Description
Mapal Order Number: 30858288
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

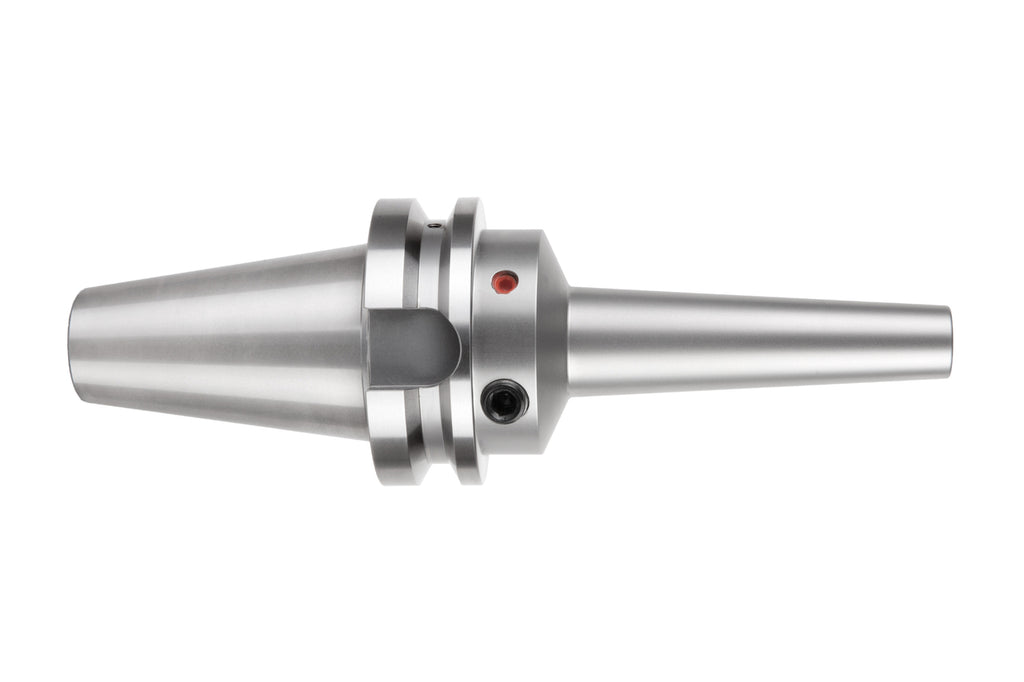

| Name | Mapal HTC-BT040-10-200-3-0-A High Torque Chuck HTC, 3° Slim Design 30858288 | |
| EDP # | 0670120 | |
| Machine Connection | BT (Form JD/JF) | |
| Size Machine Connection | 40 | |
| Technology | HighTorque Chuck | |
| d1 | 0.3937" | 10.000 mm |
| d2 | 0.7874" | 20.000 mm |
| d3 | 1.5984" | 40.600 mm |
| d4 | 1.9488" | 49.500 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 7.8740" | 200.000 mm |
| l2 | 1.6142" | 41.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 6.0630" | 154.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internally And Laterally Combined | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HighTorque Chuck HTC in the slim design allows the use of hydraulic expansion clamping technology even in contour-critical applications. Innovative manufacturing through additive manufacturing enables the best surface qualities with high process reliability at the same time.
Technical Reference Files:
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
