Description
Mapal Order Number: 30970593
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

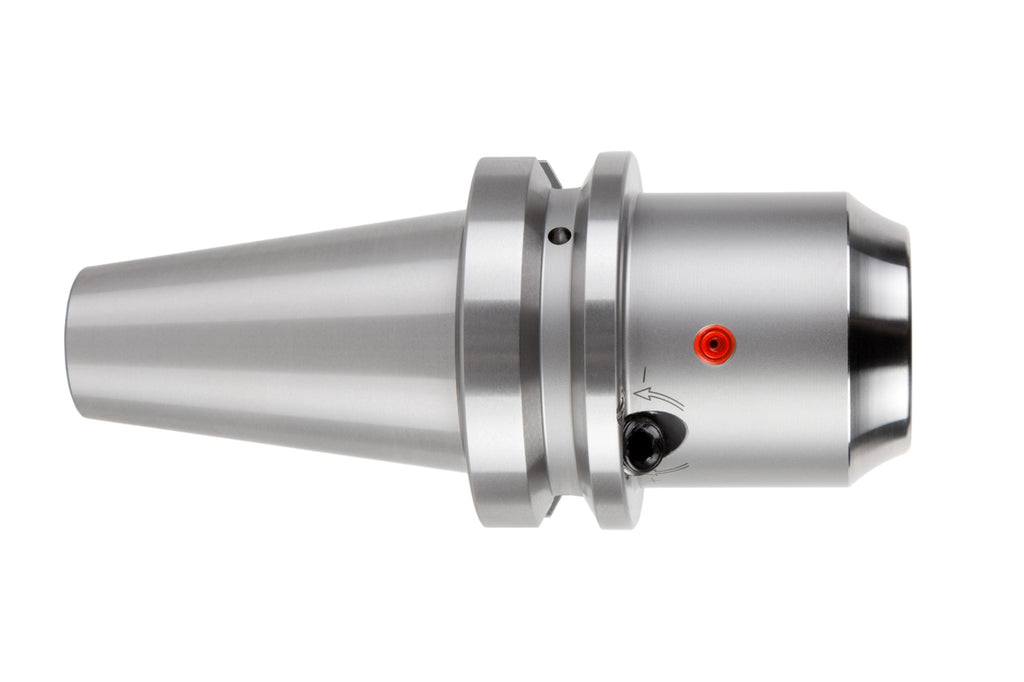

| Name | Mapal HTC-JD-FC050-12-069-1-0-A High Torque Chuck HTC, Short Heavy Design 30970593 | |
| EDP # | 0670224 | |
| Machine Connection | BT (FC) | |
| Size Machine Connection | 50 | |
| Technology | HighTorque Chuck | |
| d1 | 0.4724" | 12.000 mm |
| d2 | 1.2598" | 32.000 mm |
| d3 | 1.6535" | 42.000 mm |
| d4 | 0.0000" | 0.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 2.7165" | 69.000 mm |
| l2 | 1.8110" | 46.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 0.0000" | 0.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HighTorque Chuck HTC combines the advantages of hydraulic expansion technology with high holding forces and maximum bending stiffness. This makes it perfectly suitable for both drilling and reaming operations as well as milling operations.
Technical Reference Files:
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
