Description
Mapal Order Number: 30817986
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

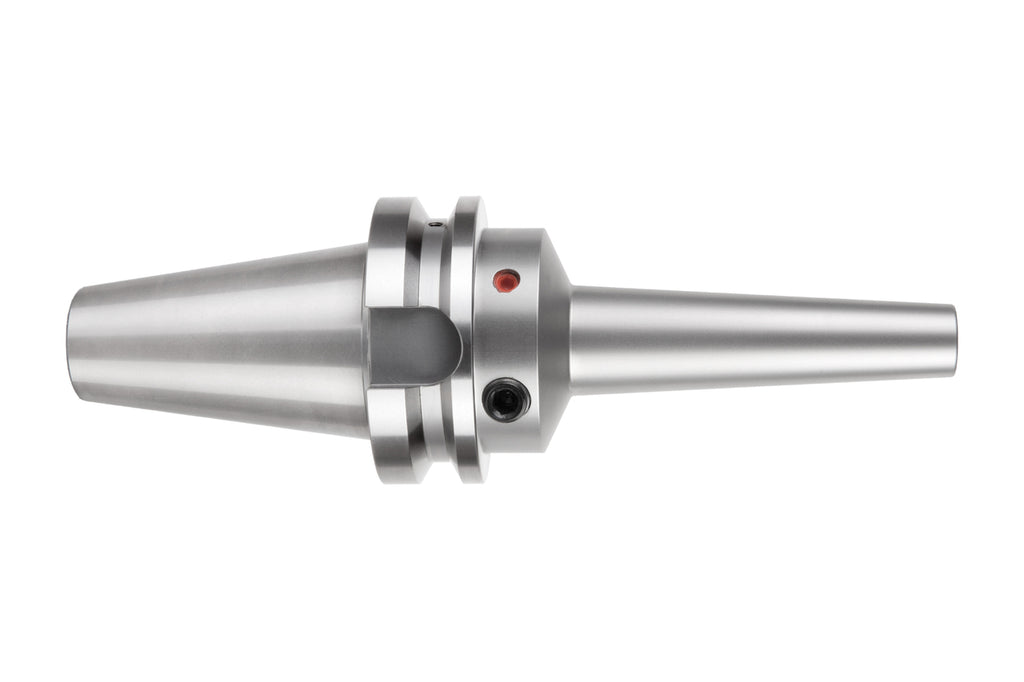

| Name | Mapal HTC-SK030-03-80-1-0-A High Torque Chuck HTC, 3° Slim Design 30817986 | |
| EDP # | 0670227 | |
| Machine Connection | SK (Form AD) | |
| Size Machine Connection | 30 | |
| Technology | HighTorque Chuck | |
| d1 | 0.1181" | 3.000 mm |
| d2 | 0.3543" | 9.000 mm |
| d3 | 0.5197" | 13.200 mm |
| d4 | 1.5748" | 40.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 3.1496" | 80.000 mm |
| l2 | 1.1024" | 28.000 mm |
| l3 | 0.6299" | 16.000 mm |
| l4 | 1.5748" | 40.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HighTorque Chuck HTC in the slim design allows the use of hydraulic expansion clamping technology even in contour-critical applications. Innovative manufacturing through additive manufacturing enables the best surface qualities with high process reliability at the same time.
Technical Reference Files:
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
