Description
Mapal Order Number: 31280347
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

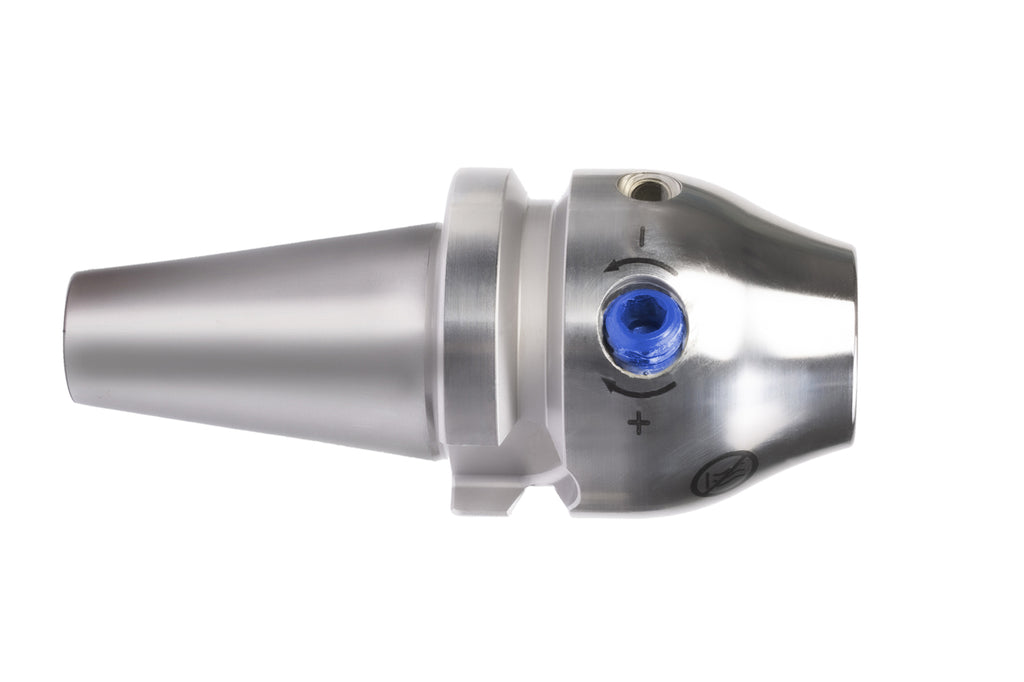

| Name | Mapal MHC-BT030-20-069-1-0-A UNIQ Mill Chuck, HA 31280347 | |
| EDP # | 0670294 | |
| Machine Connection | BT (Form JD) | |
| Size Machine Connection | 30 | |
| Technology | HydroChuck | |
| d1 | 0.7874" | 20.000 mm |
| d2 | 1.4961" | 38.000 mm |
| d3 | 2.2835" | 58.000 mm |
| d4 | 1.8110" | 46.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 2.7165" | 69.000 mm |
| l2 | 2.0079" | 51.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 1.5157" | 38.500 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume. It is universally designed for roughing, semi and finishing operations.
Technical Reference Files:
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
