Description
Mapal Order Number: 30712235
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

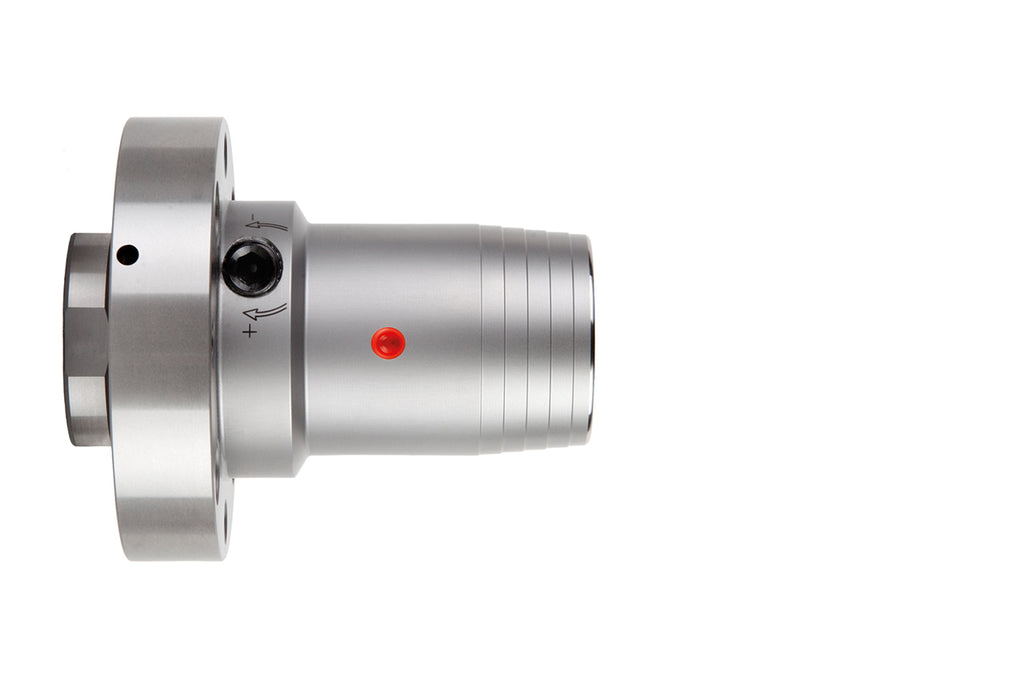

| Name | Mapal MHC-MOD060-12-075-1-2-A Hydro Chuck MHC, Standard 30712235 | |
| EDP # | 0670468 | |
| Machine Connection | Module | |
| Size Machine Connection | 60 | |
| Technology | HydroChuck | |
| d1 | 0.4724" | 12.000 mm |
| d2 | 1.1024" | 28.000 mm |
| d3 | 1.2598" | 32.000 mm |
| d4 | 1.6535" | 42.000 mm |
| l1 | 2.9528" | 75.000 mm |
| l2 | 1.8110" | 46.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 1.8110" | 46.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time.
