Description
Mapal Order Number: 30871663
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

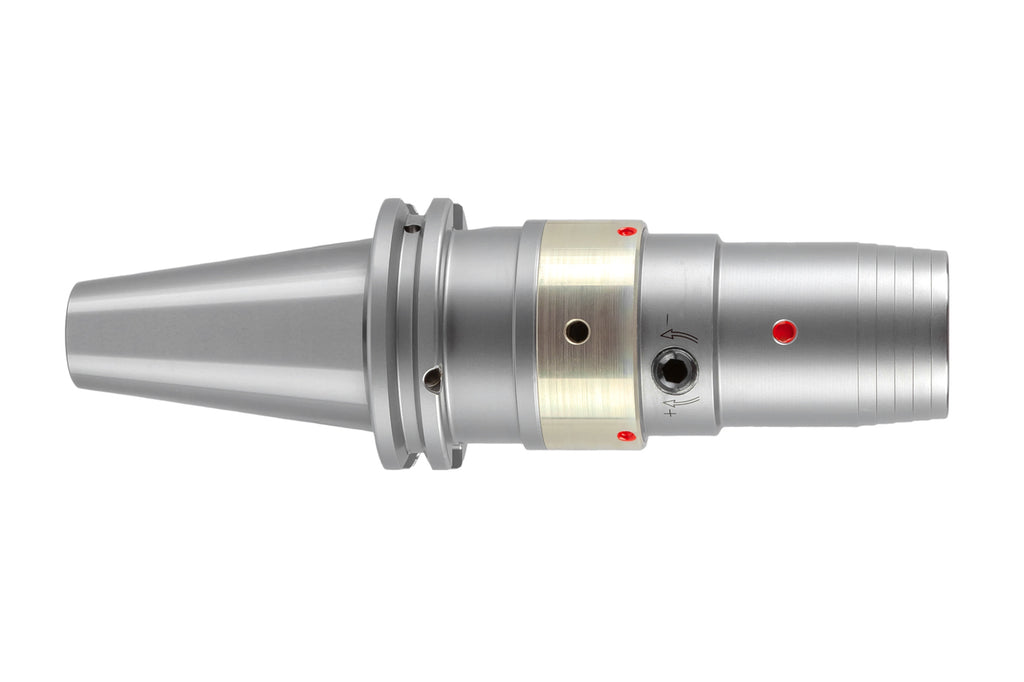

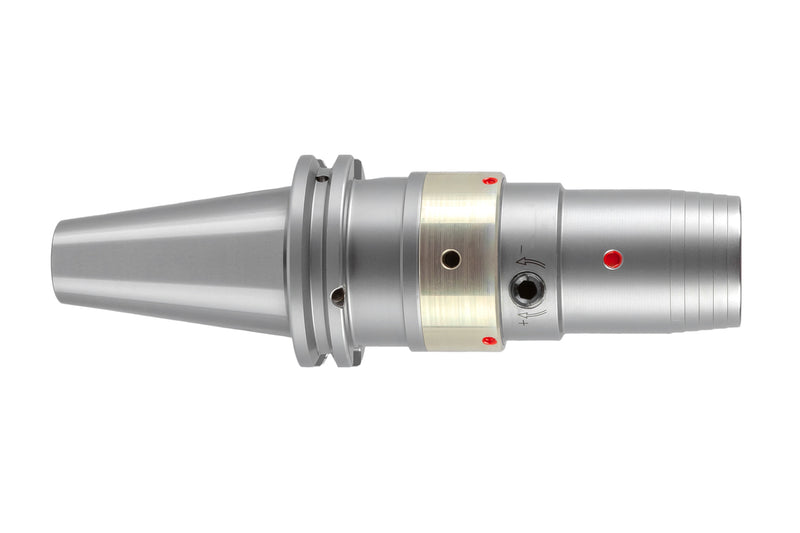

| Name | Mapal MHC-SK040-16-125-3-1-A HydroChuck Compensation 30871663 | |
| EDP # | 0670489 | |
| Machine Connection | SK (Form AD/AF) | |
| Size Machine Connection | 40 | |
| Technology | HydroChuck | |
| d1 | 0.6299" | 16.000 mm |
| d2 | 1.3386" | 34.000 mm |
| d3 | 1.4961" | 38.000 mm |
| d4 | 1.8110" | 46.000 mm |
| d5 | 2.0669" | 52.500 mm |
| l1 | 4.9213" | 125.000 mm |
| l2 | 1.9291" | 49.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 1.7717" | 45.000 mm |
| l5 | 2.3622" | 60.000 mm |
| Coolant Supply | Internally And Laterally Combined | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time. With compensation technology: alignment function on the chuck for radial alignment option to compensate for concentricity errors in the overall system.
Technical Reference Files:
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
