Description
Mapal Order Number: 30660218
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

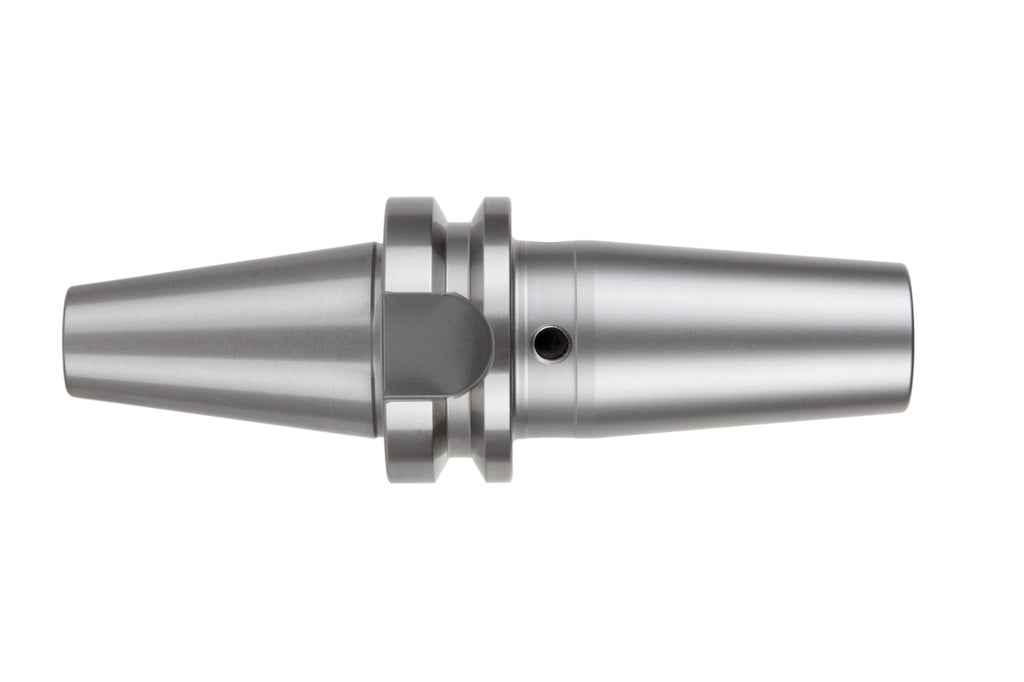

| Name | Mapal MTC-JD-FC030-03-085-1-0-A Thermo Chuck MTC, Standard 30660218 | |
| EDP # | 0670815 | |
| Machine Connection | BT (FC) | |
| Size Machine Connection | 30 | |
| Technology | ThermoChuck | |
| d1 | 0.1181" | 3.000 mm |
| d2 | 0.3937" | 10.000 mm |
| d3 | 0.6693" | 17.000 mm |
| d4 | 0.0000" | 0.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 3.3465" | 85.000 mm |
| l2 | 1.1024" | 28.000 mm |
| l3 | 0.6299" | 16.000 mm |
| l4 | 0.0000" | 0.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.
Technical Reference Files:
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
