Description
Mapal Order Number: 30320048
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

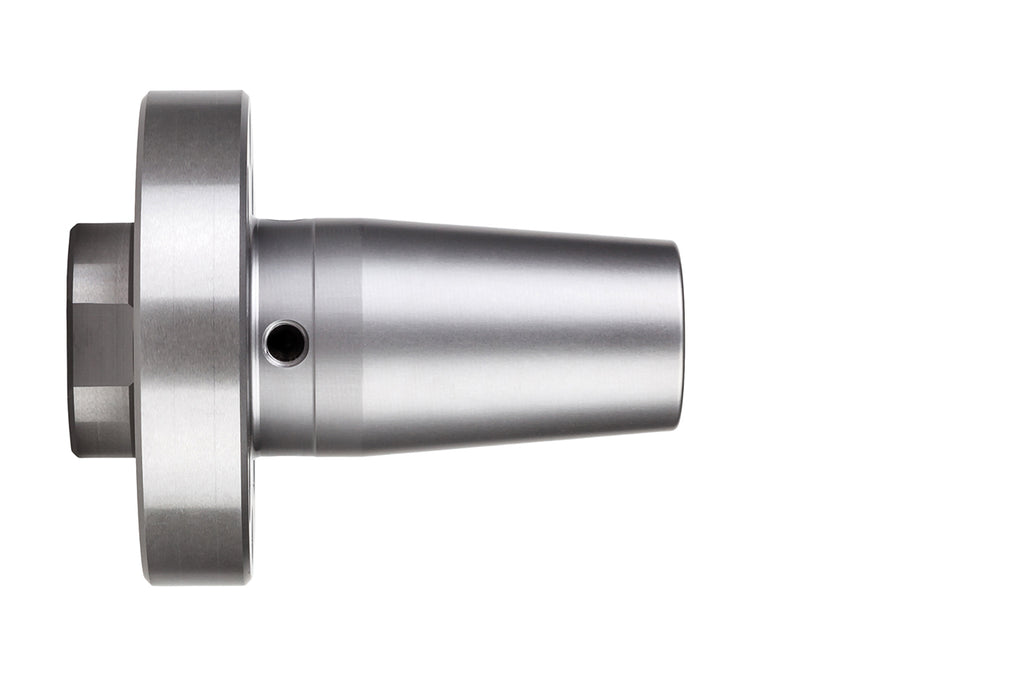

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal MTC-MOD060-06-070-1-2-A Thermo Chuck MTC, Standard 30320048 | |
| EDP # | 0670839 | |
| Machine Connection | Module | |
| Size Machine Connection | 60 | |
| Technology | ThermoChuck | |
| d1 | 0.2362" | 6.000 mm |
| d2 | 0.8268" | 21.000 mm |
| d3 | 1.0630" | 27.000 mm |
| l1 | 2.7559" | 70.000 mm |
| l2 | 1.4173" | 36.000 mm |
| l3 | 0.3937" | 10.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life.
