Mapal Order Number: 30797083
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

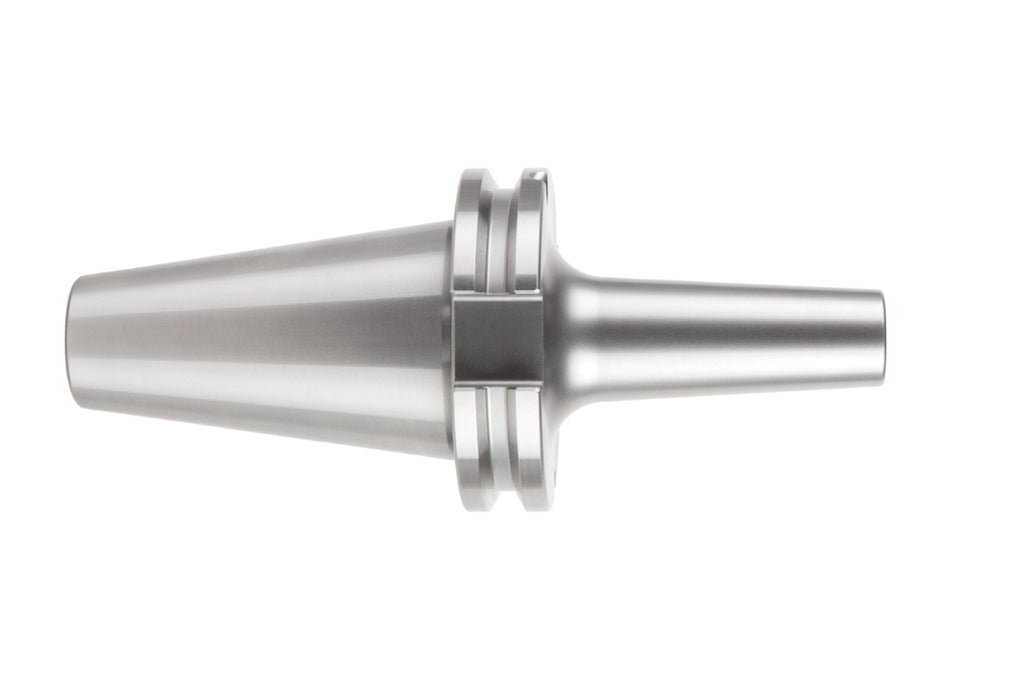

| Name | Mapal MTC-SK040-16-200-3-0-A Thermo Chuck MTC, 3° Slim Design 30797083 | |
| EDP # | 0670950 | |
| Machine Connection | SK (Form AD/AF) | |
| Size Machine Connection | 40 | |
| Technology | ThermoChuck | |
| d1 | 0.6299" | 16.000 mm |
| d2 | 0.8661" | 22.000 mm |
| d3 | 1.3386" | 34.000 mm |
| d4 | 0.0000" | 0.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 7.8740" | 200.000 mm |
| l2 | 1.9685" | 50.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 0.0000" | 0.000 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internally And Laterally Combined | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- With the ThermoChuck, tools can be clamped precisely for almost all machining tasks. The use of high-temperature tool steel guarantees maximum service life. The slim 3° design enables machining in the contour-critical range.
Technical Reference Files:
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
