Description
Mapal Order Number: 31344881
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

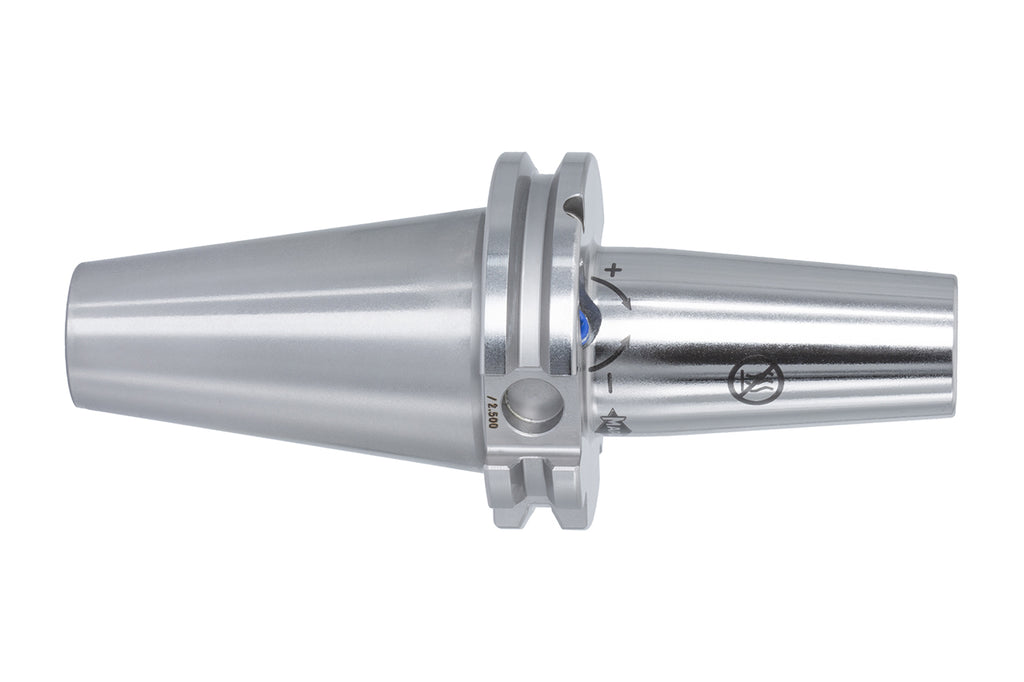

| Name | Mapal MHC-SK040-08-080-3-0-A UNIQ DReaM Chuck, 4.5° 31344881 | |
| EDP # | 0723180 | |
| Machine Connection | SK (Form AD/AF) | |
| Size Machine Connection | 40 | |
| Technology | HydroChuck | |
| d1 | 0.3150" | 8.000 mm |
| d2 | 0.8268" | 21.000 mm |
| d3 | 1.0630" | 27.000 mm |
| d4 | 0.0000" | 0.000 mm |
| d5 | 0.0000" | 0.000 mm |
| l1 | 3.1496" | 80.000 mm |
| l2 | 1.4567" | 37.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 2.1929" | 55.700 mm |
| l5 | 0.0000" | 0.000 mm |
| Coolant Supply | Internally And Laterally Combined | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The UNIQ® DReaM Chuck, 4.5° is optimized for friction and drilling applications as well as for use with finishing cutters. It enables maximum rigidity with minimal material use with minimal interference contour due to the clamping initiation in the HSK collar. The outer contour of the UNIQ DReaM Chuck is based one-to-one on DIN 69882-8 for heat shrink chucks. As a result, the advantages of hydraulic expansion clamping technology can be transferred to these applications.
Technical Reference Files:
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
