Description
Mapal Order Number: 31374687
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

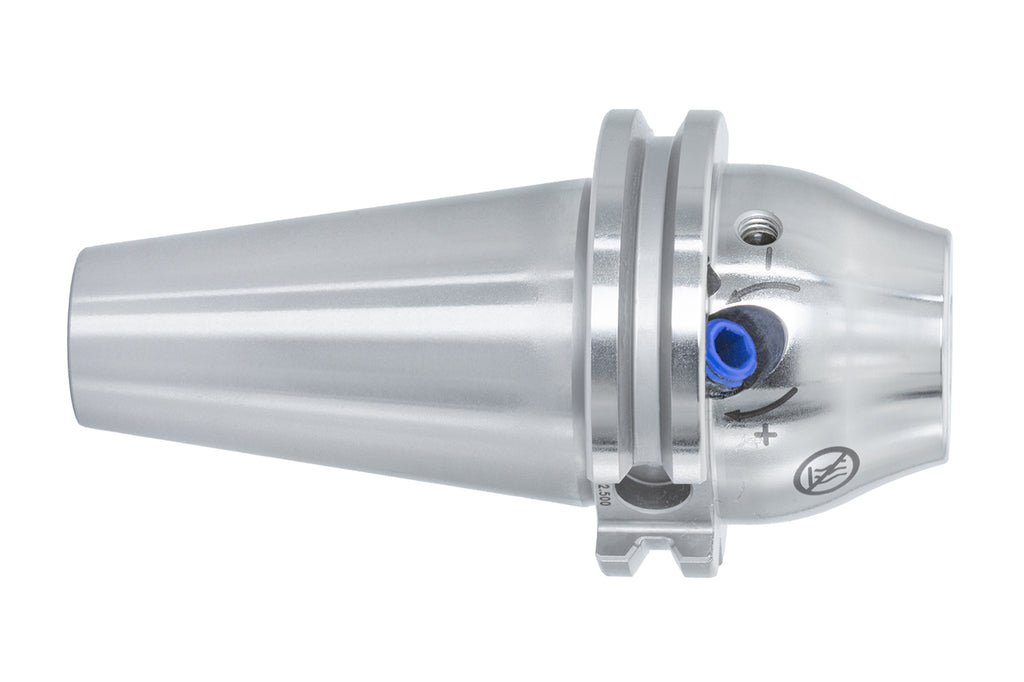

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal MHC-SK040-18-065-3-0-A UNIQ Mill Chuck, HA 31374687 | |
| EDP # | 0723189 | |
| Machine Connection | SK (Form AD/AF) | |
| Size Machine Connection | 40 | |
| Technology | HydroChuck | |
| d1 | 0.7087" | 18.000 mm |
| d2 | 1.4961" | 38.000 mm |
| d3 | 1.9291" | 49.000 mm |
| l1 | 2.5394" | 64.500 mm |
| l2 | 1.9291" | 49.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 1.6378" | 41.600 mm |
| Coolant Supply | Internally And Laterally Combined | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The UNIQ® Mill Chuck is specially designed for clamping milling tools with HA shank. Due to the high temperature resistance of 80 C° even with very long milling cycles, it convinces in highly dynamic milling applications, such as SPM (Structural Part Machining), HSC (High Speed Cutting) or HPC (High Performance Cutting), of high-quality components with excellent process reliability and high metal removal volume. It is universally designed for roughing, semi and finishing operations.
Technical Reference Files:
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
