Description
Material Number: 12411686
Article Number: 8420006397
Komet Number (Unpacked): A06 30150
Komet Number (Packed): A0630150
This product is priced singly and comes in packs of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

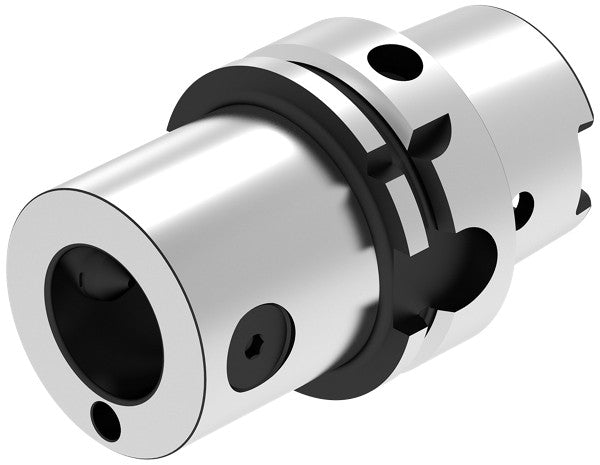

| Name | Ceratizit Adaptor HSK-A63-ABS50 Adapter with ABS Connection 12411686 (0730452) | |
| EDP # | 0730452 | |
| Weight (1 pc.) | 42.0 oz | 1200.0 g |
| Machine interface size | HSK-A 63 | |

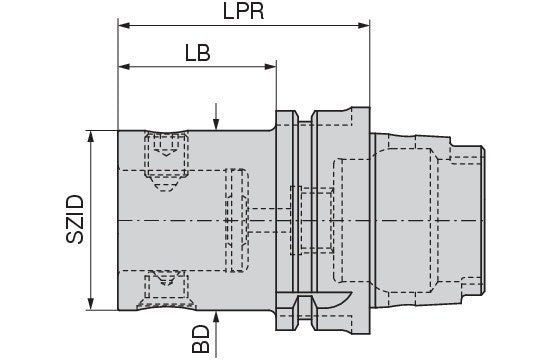

| Neck diameter (BD) BD | 1.9685 inch | 50 mm |
| Protruding length LPR | 2.7559 inch | 70 mm |
| nominal size SZID | ABS 50 | |
| Overall length OAL | 4.0157 inch | 102 mm |
| Body length LB | 1.7323 inch | 44 mm |
| Clamping diameter (DCONWS) DCONWS | 1.1024 inch | 28 mm |
| Balance quality | G 6.3 nmax 10000 | |
