Description
Ceratizit Article Number: 7059912001
Ceratizit Material Number: 14745986
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

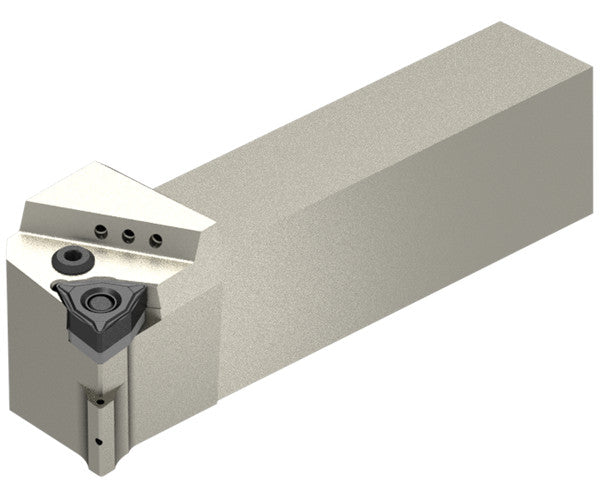

| Name | Ceratizit PWLNR 2020 X08-T DC CoreLine 95° Tool Holder With Lever Clamping 7059912001 | |
| EDP # | 0746484 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 355 g |
| Product-Carbon-Footprint | B | |
| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.0945" | 104.000 mm |
| Head length / LH | 1.3780" | 35.000 mm |
| Functional width / WF | 0.9843" | 25.000 mm |
| Insert | WNMG 0804 | |
| Coolant entry style code, radial thread size / CRNT | M6 | |
| Coolant entry, thread size / CNT | G1/8" | |
| torque moment | 4 Nm | |
| Clamping system | Lever clamping for negative indexable inserts | |
| holder form | PWLN 95° | |
| Internal Coolant | DirectCooling | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
