Description
Ceratizit Article Number: 7059502000
Ceratizit Material Number: 14746053
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PRDCN 2020 X12-T DC MaxiLock-N 0° Toolholder With Lever Clamping 7059502000 | |
| EDP # | 0746487 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.0004 oz | 0.0 g |

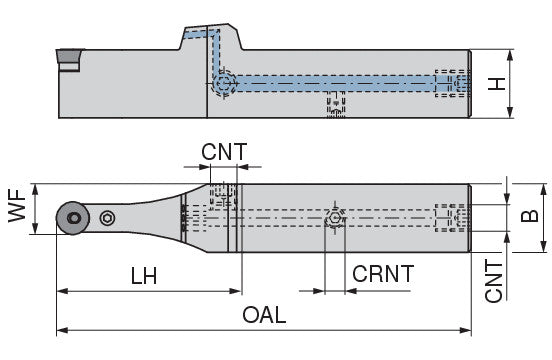

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 5.1969" | 132.000 mm |
| Head length / LH | 2.4803" | 63.000 mm |
| Functional width / WF | 0.6299" | 16.000 mm |
| Insert | RC.. 1204 | |
| Coolant entry style code, radial thread size / CRNT | M6 | |
| Coolant entry, thread size / CNT | G1/8" | |
| Overall height / OAH | 1.0669" | 27.100 mm |
| torque moment | 3 Nm | |
| Version | Neutral | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
