Description
Ceratizit Article Number: 70832102
Ceratizit Material Number: 154280
Ceratizit Komet Number (Unpacked): 70832 102
Ceratizit Komet Number (Packed): 70832102
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

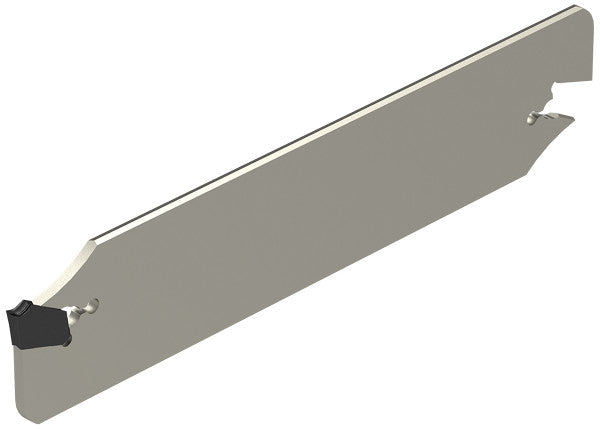

| Name | Ceratizit XLCFN 2603 J31 FX MonoClamp - Radial Blade 70832102 | |
| EDP # | 0751597 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 103 g |
| Product-Carbon-Footprint | B | |

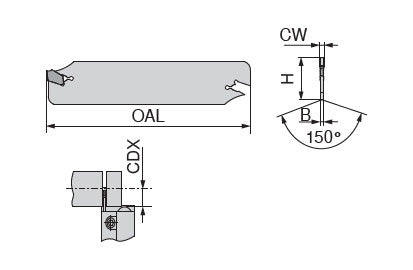

| Shank height / H | 1.0236" | 26.000 mm |
| Shank width / B | 0.9449" | 24.000 mm |
| Cutting width / CW | 1.2205" | 31.000 mm |
| Overall length / OAL | 4.3307" | 110.000 mm |
| Cutting depth maximum / CDX | 1.3780" | 35.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
