Description
Ceratizit Article Number: 7858400803
Ceratizit Material Number: 11213275
Ceratizit Komet Number (Unpacked): 11213 275
Ceratizit Komet Number (Packed): 11213275
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SSDCN 08-3 MaxiLock-S 45° Toolholder With Screw Clamping 7858400803 | |
| EDP # | 0751732 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 7.0 oz | 204 g |

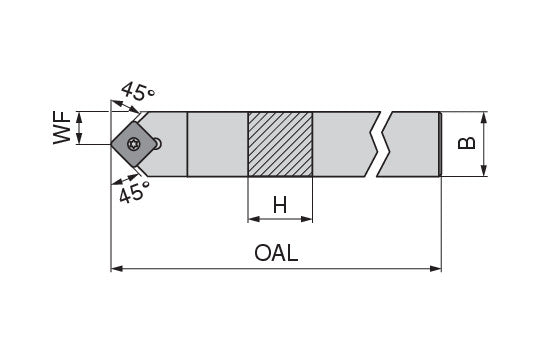

| Shank height / H | 0.5000" | 12.700 mm |
| Shank width / B | 0.5000" | 12.700 mm |
| Overall length / OAL | 3.5000" | 88.900 mm |
| Functional width / WF | 0.2630" | 6.680 mm |
| Version | Neutral | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
