Description
Ceratizit Article Number: 70352602
Ceratizit Material Number: 11346958
Ceratizit Komet Number (Unpacked): 70352 602
Ceratizit Komet Number (Packed): 70352602
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

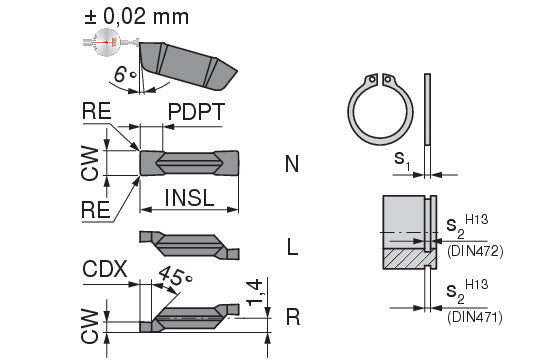

| Properties | ||
|---|---|---|

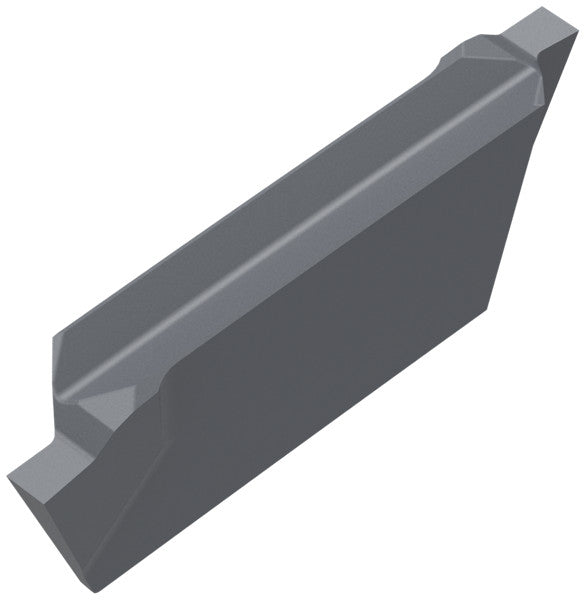

| Name | Ceratizit GX16-2S1.20R CTP1340 Circlip Groove Insert 09/16 Standard 70352602 | |
| EDP # | 0751761 | |
| Weight (1 pc.) | 0.1 oz | 1.6 g |
| Cutting width / CW +/-0,02 | 0.0472" | 1.200 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0394" | 1.000 mm |
| S2 - CIRCLIP | 0.0433" | 1.100 mm |
| Cutting depth maximum / CDX | 0.0528" | 1.340 mm |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
