Description
Ceratizit Article Number: 74600501
Ceratizit Material Number: 11569579
Ceratizit Komet Number (Unpacked): 18094 10029
Ceratizit Komet Number (Packed): 1809410029
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

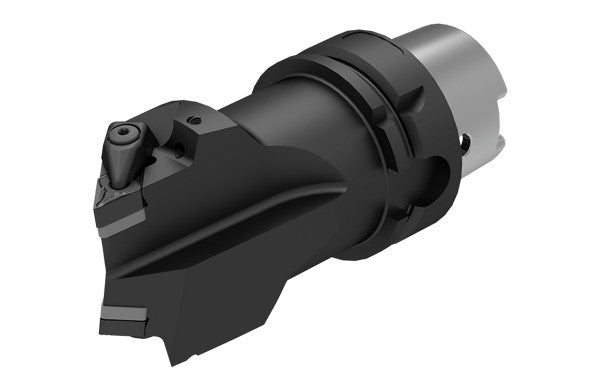

| Name | Ceratizit HSK-T63-DCMNL12+DDMNL15 MaxiLock-D Toolholder With Top Clamping 74600501 | |
| EDP # | 0751836 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 67.0 oz | 1898 g |

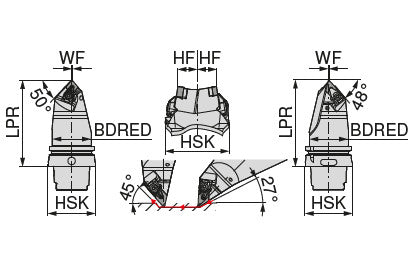

| Protruding length / LPR | 4.5276" | 115.000 mm |
| Body diameter, reduced / BDRED | 2.0866" | 53.000 mm |
| Functional width / WF | 0.0197" | 0.500 mm |
| Functional height / HF | 0.7874" | 20.000 mm |
| Insert | CN.. 1204 / DN.. 1506 | |
| torque moment | 4 Nm | |
| Machine interface size | HSK-T 63 | |
| Version | Neutral | |
| Product-Carbon-Footprint | B | |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-T form was developed in 2008 for use in multi-tasking and turning centers. It is essentially the same as HSK-A, except in that the drive slots are manufactured to a much tighter tolerance standard (ISO121 165-3:2008), which provides better rotational accuracy crucial for positiong turning tools consistently. In rotating applications, HSK-T and HSK-A are fully interchangeable.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
