Description
Ceratizit Article Number: 7850202486
Ceratizit Material Number: 11799905
Ceratizit Komet Number (Unpacked): 11799 905
Ceratizit Komet Number (Packed): 11799905
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

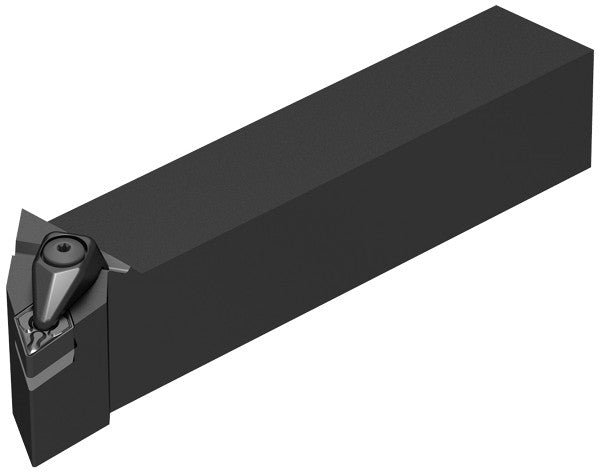

| Name | Ceratizit DDJNR 24-4E-N MaxiLock-D 93° Toolholder With Top Clamping 7850202486 | |
| EDP # | 0751903 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

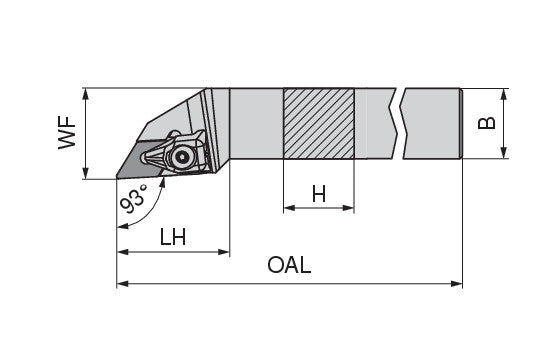

| Shank height / H | 1.5000" | 38.100 mm |
| Shank width / B | 1.5000" | 38.100 mm |
| Overall length / OAL | 7.0000" | 177.800 mm |
| Head length / LH | 1.5350" | 38.989 mm |
| Functional width / WF | 2.0000" | 50.800 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
