Description
Ceratizit Article Number: 7850702477
Ceratizit Material Number: 11799929
Ceratizit Komet Number (Unpacked): 11799 929
Ceratizit Komet Number (Packed): 11799929
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

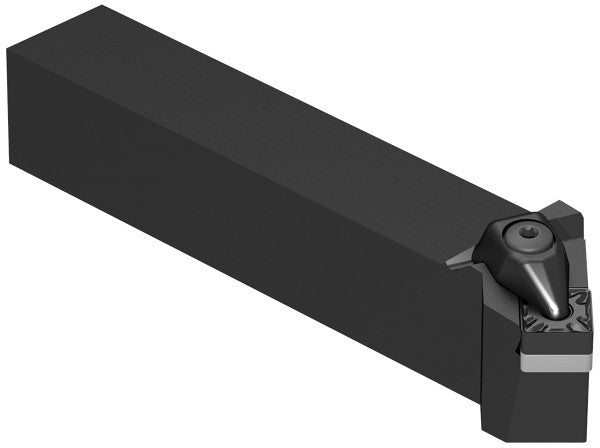

| Name | Ceratizit DSSNL 24-6E-N MaxiLock-D 45° Toolholder With Top Clamping 7850702477 | |
| EDP # | 0751924 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

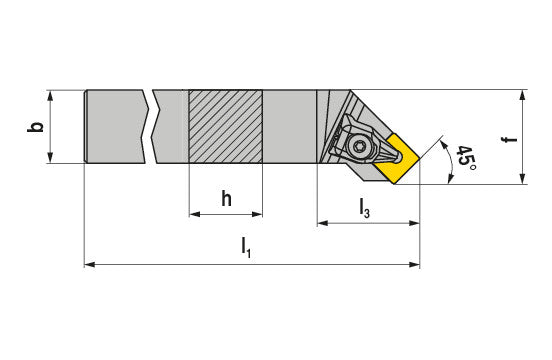

| Shank height / H | 1.5000" | 38.100 mm |
| Shank width / B | 1.5000" | 38.100 mm |
| Overall length / OAL | 7.0000" | 177.800 mm |
| Head length / LH | 1.7720" | 45.009 mm |
| Functional width / WF | 2.0000" | 50.800 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
