Description
Ceratizit Article Number: 7851202495
Ceratizit Material Number: 11829968
Ceratizit Komet Number (Unpacked): 11829 968
Ceratizit Komet Number (Packed): 11829968
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

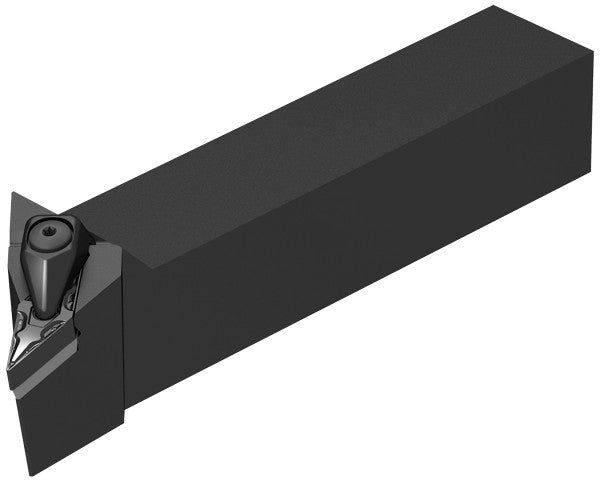

| Name | Ceratizit DVJNR 24-3EA-N MaxiLock-D 93° Toolholder With Top Clamping 7851202495 | |
| EDP # | 0752049 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

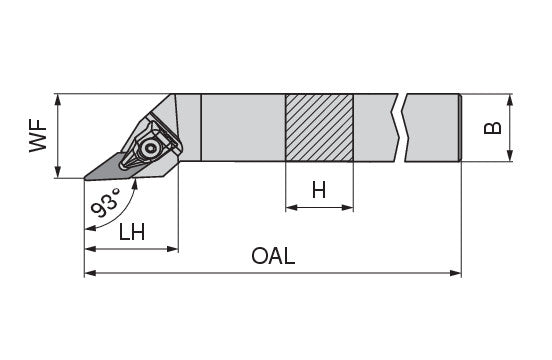

| Shank height / H | 1.5000" | 38.100 mm |
| Shank width / B | 1.5000" | 38.100 mm |
| Overall length / OAL | 7.0000" | 177.800 mm |
| Head length / LH | 1.7500" | 44.450 mm |
| Functional width / WF | 2.0000" | 50.800 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
