Description
Ceratizit Article Number: 7854300812
Ceratizit Material Number: 11830017
Ceratizit Komet Number (Unpacked): 11830 017
Ceratizit Komet Number (Packed): 11830017
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

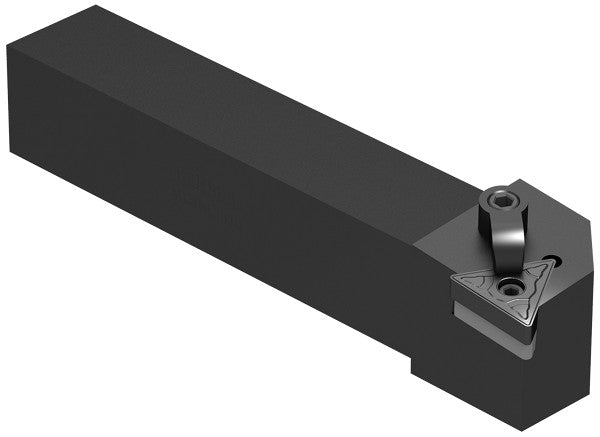

| Name | Ceratizit MTGNL 08-2A MaxiLock-M 90° Toolholder With Top Clamping 7854300812 | |
| EDP # | 0752088 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

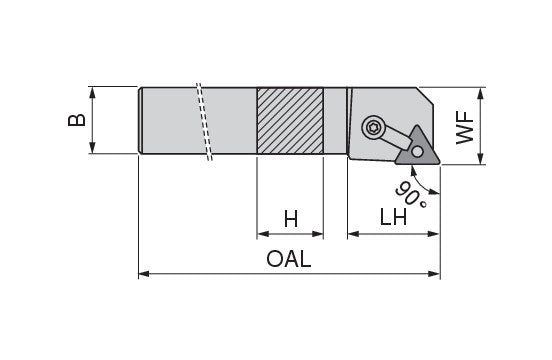

| Shank height / H | 0.5000" | 12.700 mm |
| Shank width / B | 0.5000" | 12.700 mm |
| Overall length / OAL | 4.0000" | 101.600 mm |
| Head length / LH | 0.8750" | 22.225 mm |
| Functional width / WF | 0.6250" | 15.875 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
