Description
Ceratizit Article Number: 70289530
Ceratizit Material Number: 11977454
Ceratizit Komet Number (Unpacked): 59601 00081
Ceratizit Komet Number (Packed): 5960100081
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

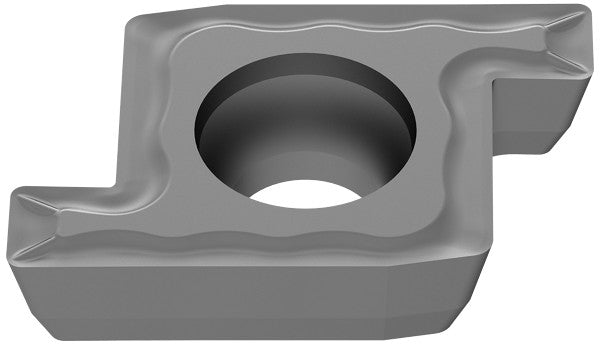

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit PM 25LG 353004-M20 CTPP430 PM-L 70289530 | |
| EDP # | 0752221 | |
| Weight (1 pc.) | 0.3 oz | 7.7 g |

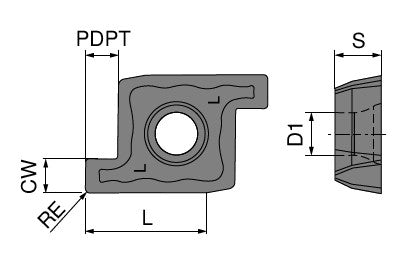

| Corner radius / RE | 0.0157" | 0.400 mm |
| designation | PM 25 G 353004 | |
| Cutting width / CW | 0.1378" | 3.500 mm |
| Profile depth insert / PDPT | 0.1181" | 3.000 mm |
| Cutting edge length / L | 0.4921" | 12.500 mm |
| Insert thickness / S | 0.1772" | 4.500 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Coating name / Grade (Ceratizit) / COATN | CTPP430 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
