Description
Ceratizit Article Number: 8720102052
Ceratizit Material Number: 12097940
Ceratizit Komet Number (Unpacked): A52 10140
Ceratizit Komet Number (Packed): A5210140
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

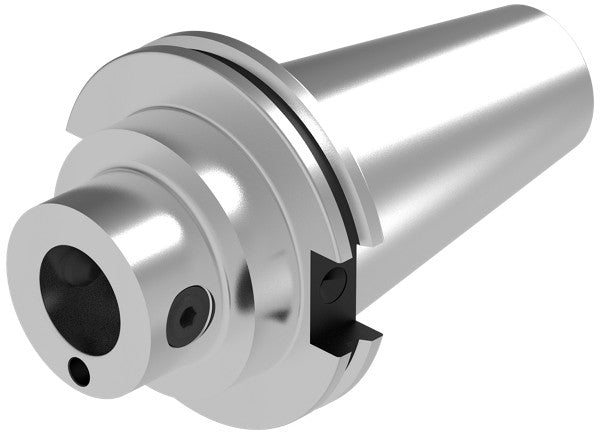

| Name | Ceratizit ABS 40 CAT 40 ADAPTER Adapter With Connection 8720102052 | |
| EDP # | 0752280 | |
| Weight (1 pc.) | 44.0 oz | 1250 g |
| Machine interface size | CAT 40 | |

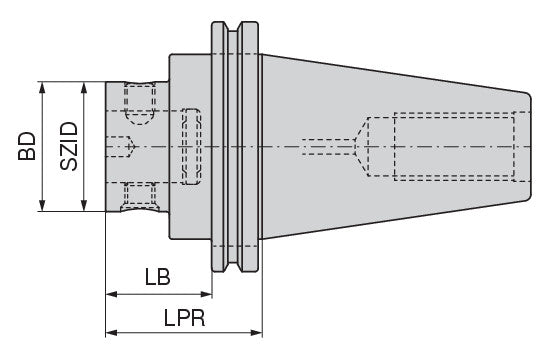

| nominal size / SZID | ABS 40 | |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Body length / LB | 1.6102" | 40.900 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
