Description
Ceratizit Article Number: 8720402852
Ceratizit Material Number: 12097945
Ceratizit Komet Number (Unpacked): A52 11151
Ceratizit Komet Number (Packed): A5211151
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

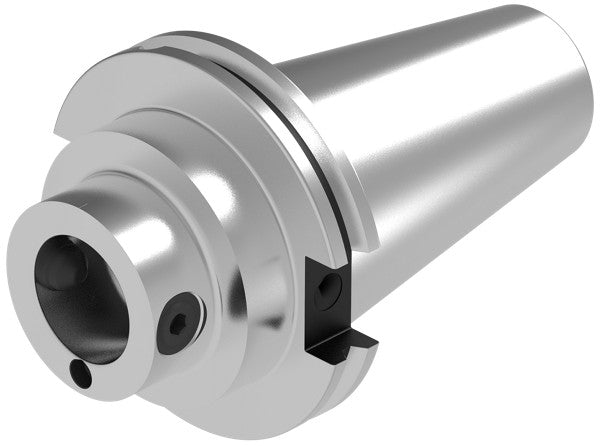

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

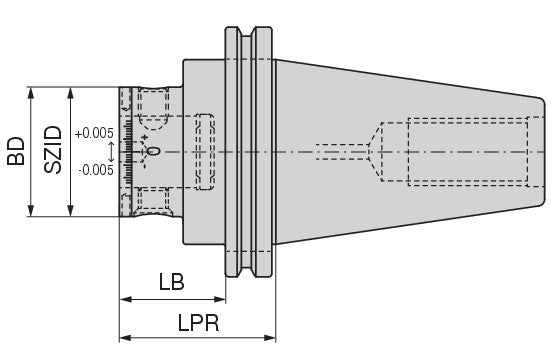

| Properties | ||
|---|---|---|
| Name | Ceratizit ABS 50 CAT 40 EC-AD/B Eccentric Adjuster With Connection 8720402852 | |
| EDP # | 0752283 | |
| Weight (1 pc.) | 52.0 oz | 1484 g |
| Machine interface size | CAT 40 | |
| nominal size / SZID | ABS 50 | |
| Protruding length / LPR | 2.9528" | 75.000 mm |
| Overall length / OAL | 5.6378" | 143.200 mm |
| Body length / LB | 2.2028" | 55.950 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.1024" | 28.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 1.7618" | 44.750 mm |
| Body diameter, 1st cutting step / BD_1 | 1.9685" | 50.000 mm |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
