Description
Ceratizit Article Number: 8723302853
Ceratizit Material Number: 12098003
Ceratizit Komet Number (Unpacked): A52 10850
Ceratizit Komet Number (Packed): A5210850
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

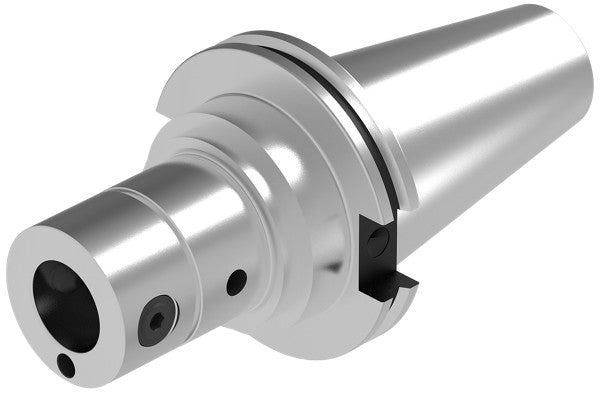

| Name | Ceratizit ABS 50 CAT 50-KR Adapter With Connection For Coolant Ring 8723302853 | |
| EDP # | 0752289 | |
| Weight (1 pc.) | 144.0 oz | 4093 g |

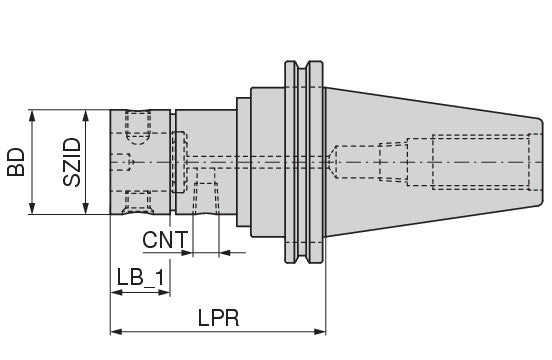

| Machine interface size | CAT 50 | |
| nominal size / SZID | ABS 50 | |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Body length 1 / LB_1 | 1.1024" | 28.000 mm |
| Overall length / OAL | 7.9370" | 201.600 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.1024" | 28.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 2.7500" | 69.850 mm |
| Body diameter, 1st cutting step / BD_1 | 1.9685" | 50.000 mm |
| Coolant entry, thread size / CNT | NPT 1/8" | |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
