Description
Ceratizit Article Number: 70359134
Ceratizit Material Number: 12157591
Ceratizit Komet Number (Unpacked): 59601 00031
Ceratizit Komet Number (Packed): 5960100031
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

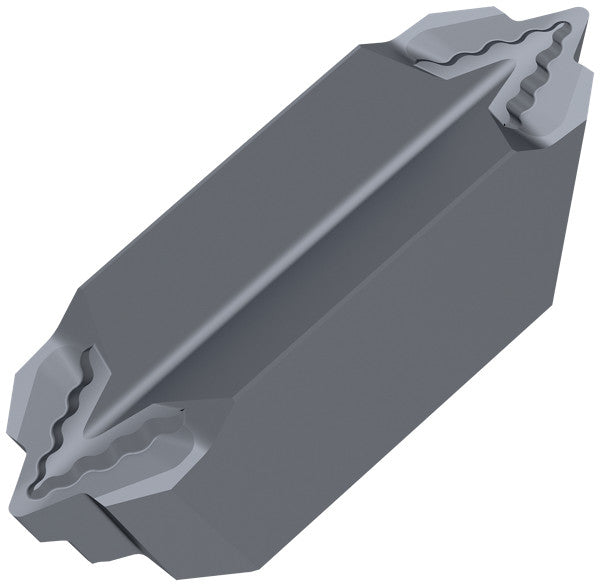

| Name | Ceratizit TC16-2 EI 11 W CTPP535 Threading Inserts Full Profile Whitworth 55° 70359134 | |
| EDP # | 0752318 | |
| Weight (1 pc.) | 0.1 oz | 3.2 g |
| Product-Carbon-Footprint | B | |

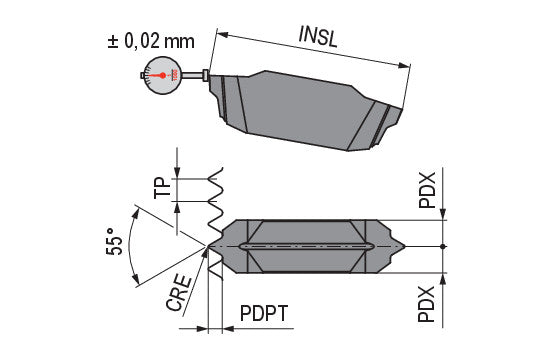

| Threads per inch / TPI | 11 | |
| Profile depth insert / PDPT | 0.0602" | 1.530 mm |
| Profile distance ex / PDX | 0.0846" | 2.150 mm |
| Spot radius / CRE | 0.0118" | 0.300 mm |
| Size | TC 16-2 ... | |
| Insert length / INSL | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | CTPP535 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
