Description
Ceratizit Article Number: 40590016
Ceratizit Material Number: 12396680
Ceratizit Komet Number (Unpacked): 640.01.001
Ceratizit Komet Number (Packed): 64001001
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit Reamax Holder Cyl 12.00-15.999 Short KOMET REAMAX Holder 40590016 | |
| EDP # | 0752403 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Aluminum (Green) Stainless Steel (Yellow) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 111 g |

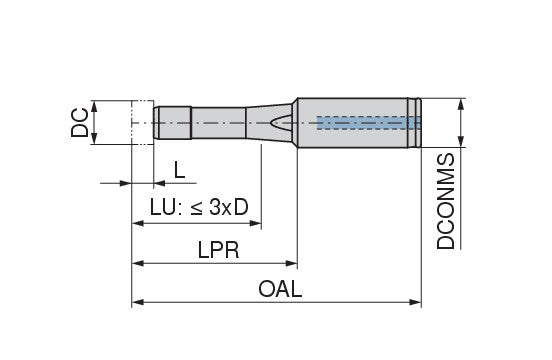

| Cutting edge Ø - range / DC | 0.0984" - 0.6295" | 2.500 - 15.990 mm |
| Coupling Size | 1 | |
| Overall length / OAL | 4.2126" | 107.000 mm |
| Protruding length / LPR | 2.3228" | 59.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Cutting edge Ø -range - Inch / DC | 0.4921" - 0.6295" | 12.500 - 15.990 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
