Description
Ceratizit Article Number: 4050106599
Ceratizit Material Number: 12413678
Ceratizit Komet Number (Unpacked): 75A.40.13070
Ceratizit Komet Number (Packed): 75A4013070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

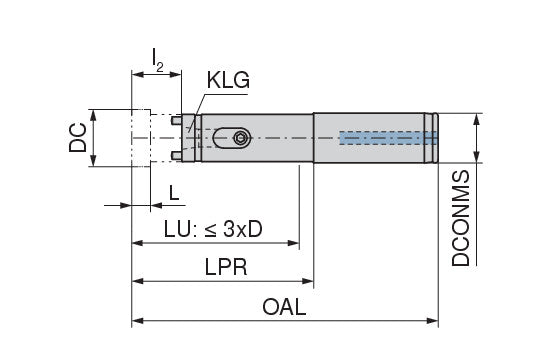

| Properties | ||
|---|---|---|
| Name | Ceratizit Reamax TS Holder Cyl 52,00-70,00 Short KOMET REAMAX 4050106599 | |
| EDP # | 0753524 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Aluminum (Green) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 41.0 oz | 1175 g |
| Cutting edge Ø - range / DC | 0.0787" - 2.5591" | 2.000 - 65.000 mm |
| Coupling Size | 7 | |
| Overall length / OAL | 7.0866" | 180.000 mm |
| L2 | 1.1811" | 30.000 mm |
| Protruding length / LPR | 4.7244" | 120.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2598" | 32.000 mm |
| Cutting edge length / L | 0.3150" | 8.000 mm |
| Cutting edge Ø -range - Inch / DC | 0.0472" - 2.5590" | 1.200 - 65.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
