Description
Ceratizit Article Number: 4050604299
Ceratizit Material Number: 12413696
Ceratizit Komet Number (Unpacked): 75A.41.15050
Ceratizit Komet Number (Packed): 75A4115050
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

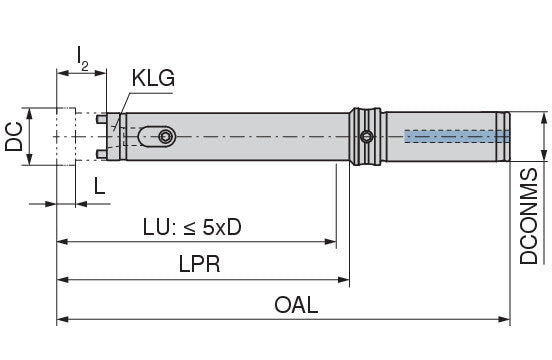

| Properties | ||
|---|---|---|
| Name | Ceratizit TS Holder DAH Zero Cyl 35,00-41,99 Long KOMET REAMAX Holder 4050604299 | |
| EDP # | 0753541 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 38.0 oz | 1088 g |
| Cutting edge Ø - range / DC | 0.1969" - 1.6531" | 5.000 - 41.990 mm |
| Coupling Size | 5 | |
| Overall length / OAL | 10.0787" | 256.000 mm |
| L2 | 0.9843" | 25.000 mm |
| Protruding length / LPR | 7.8740" | 200.000 mm |
| Mounting spigot diameter / DCONMS 25 | 0.9843" | 25.000 mm |
| Cutting edge length / L | 0.2362" | 6.000 mm |
| Cutting edge Ø -range - Inch / DC | 0.3780" - 1.6535" | 9.600 - 42.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
