Description
Ceratizit Article Number: 8331202599
Ceratizit Material Number: 12540186
Ceratizit Komet Number (Unpacked): 57B.40.00010
Ceratizit Komet Number (Packed): 57B4000010
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

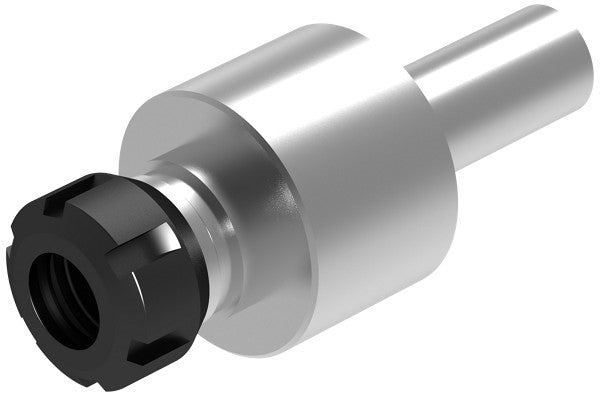

| Name | Ceratizit FLOATING HOLDER DPS ER25 CYL SHANK Ø25MM Floating Holder With Cylindrical Shank 8331202599 | |
| EDP # | 0755811 | |
| Weight (1 pc.) | 41.0 oz | 1175 g |

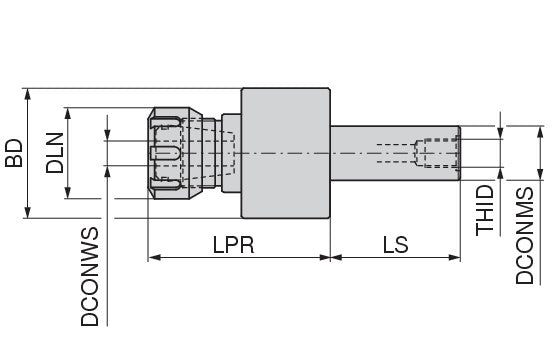

| Mounting spigot diameter / DCONMS h6 | 0.9843" | 25.000 mm |
| for collet | 430E (ER25) | |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 3 - 16 mm | |
| Diameter Lock Nut / DLN | 1.6535" | 42.000 mm |
| Protruding length / LPR | 3.3071" | 84.000 mm |
| Shank length / LS | 2.3622" | 60.000 mm |
| Neck diameter (BD) / BD | 2.3228" | 59.000 mm |
| Thread designation inside / THID | G 1/4" | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
