Description
Ceratizit Article Number: 8422003292
Ceratizit Material Number: 12540253
Ceratizit Komet Number (Unpacked): A30 63201
Ceratizit Komet Number (Packed): A3063201
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

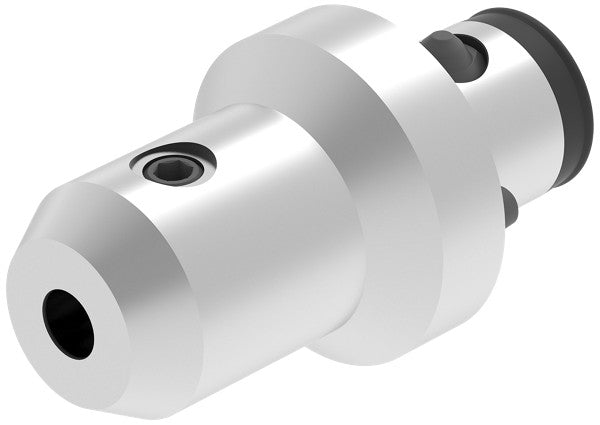

| Name | Ceratizit ADAPTOR SLEEVE ABS80-FWD32 Cylindrical Shank Adapter | |
| EDP # | 0755857 | |
| Weight (1 pc.) | 110.0 oz | 3119 g |
| Machine interface size | ABS 80 | |

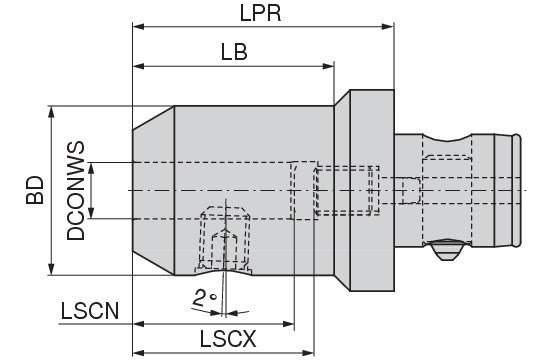

| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Protruding length / LPR | 3.5433" | 90.000 mm |
| Neck diameter (BD) / BD | 2.8346" | 72.000 mm |
| Body taper end diameter / BTED | 2.2441" | 57.000 mm |
| Body length / LB | 2.7559" | 70.000 mm |
| Body half taper angle / BHTA | 40 ° | |
| Clamping length minimum machine side / LSCN | 1.9685" | 50.000 mm |
| Clamping length maximum machine side / LSCX | 2.3622" | 60.000 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
