Description
Ceratizit Article Number: 8422501988
Ceratizit Material Number: 12540296
Ceratizit Komet Number (Unpacked): A34 33060
Ceratizit Komet Number (Packed): A3433060
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

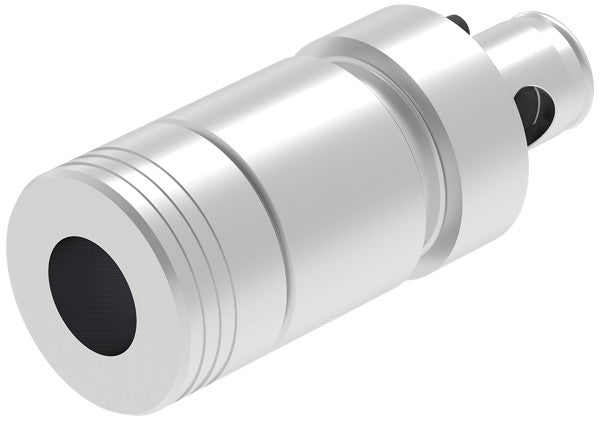

| Name | Ceratizit TAPPING CHUCK ABS 40-GWF19-IK Quick Change Tapping Chuck With Length Compensation 8422501988 | |
| EDP # | 0755876 | |
| Weight (1 pc.) | 20.0 oz | 557 g |
| Machine interface size | ABS 40 | |
| cutting range | M3 - M12 | |
| nominal size / SZID | 01 | |

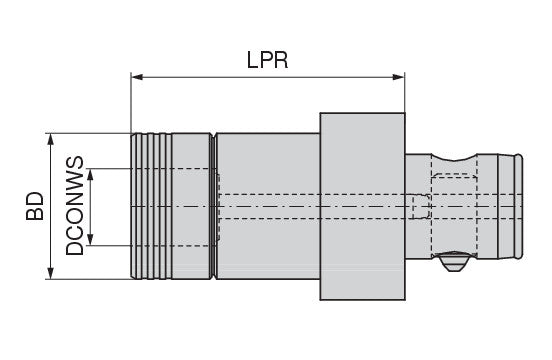

| Protruding length / LPR | 2.8740" | 73.000 mm |
| Neck diameter (BD) / BD | 1.5354" | 39.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7480" | 19.000 mm |
| Body length / LB | 2.4803" | 63.000 mm |
| LZD± | 0.2953" | 7.500 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 3.8976" | 99.000 mm |
| Clamping length machine side / LSC | 0.7087" | 18.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
