Description
Ceratizit Article Number: 8423408078
Ceratizit Material Number: 12540356
Ceratizit Komet Number (Unpacked): A50 76370
Ceratizit Komet Number (Packed): A5076370
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

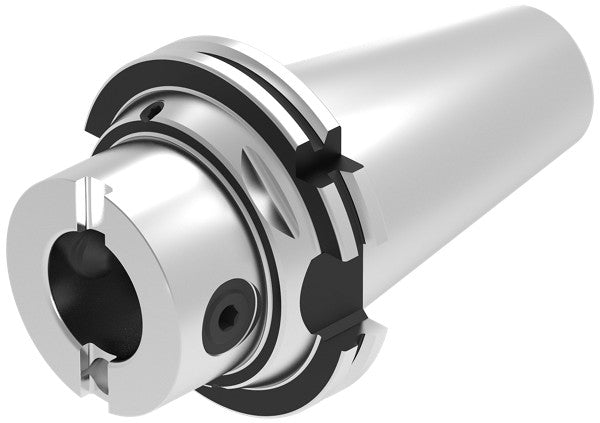

| Name | Ceratizit SHANK ISO50 DIN69871-AD/B ABS80N Adapter With ABS-N Connection 8423408078 | |
| EDP # | 0755908 | |
| Weight (1 pc.) | 143.0 oz | 4047 g |
| Machine interface size | SK 50 | |
| nominal size / SZID | ABS 80 N | |

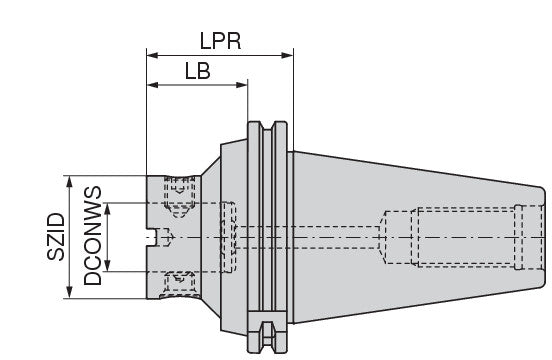

| Protruding length / LPR | 2.7559" | 70.000 mm |
| Body length / LB | 2.0039" | 50.900 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.8110" | 46.000 mm |
| Balance quality | G 6,3 n<sub>max</sub> 8000 | |
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
