Description
Ceratizit Article Number: 8420805096
Ceratizit Material Number: 12540381
Ceratizit Komet Number (Unpacked): A55 02360
Ceratizit Komet Number (Packed): A5502360
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

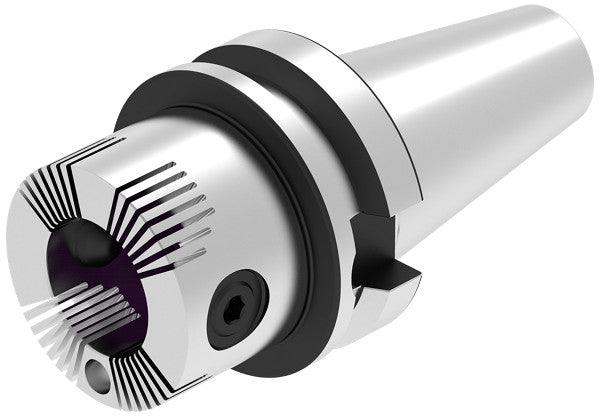

| Name | Ceratizit TAPER SHANK ABS63 JIS B 6339 BT50 AD/B Torsional Vibration Dampers With Connection 8420805096 | |
| EDP # | 0755917 | |
| Weight (1 pc.) | 155.0 oz | 4387 g |
| Machine interface size | BT 50 | |
| nominal size / SZID | ABS 63 | |

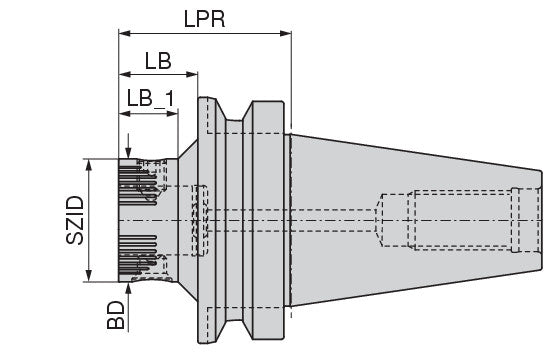

| Protruding length / LPR | 3.1496" | 80.000 mm |
| Body length 1 / LB_1 | 1.4567" | 37.000 mm |
| Body length / LB | 1.6535" | 42.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
