Description
Ceratizit Article Number: 4089509199
Ceratizit Material Number: 12543459
Ceratizit Komet Number (Unpacked): 513.81.010
Ceratizit Komet Number (Packed): 51381010
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

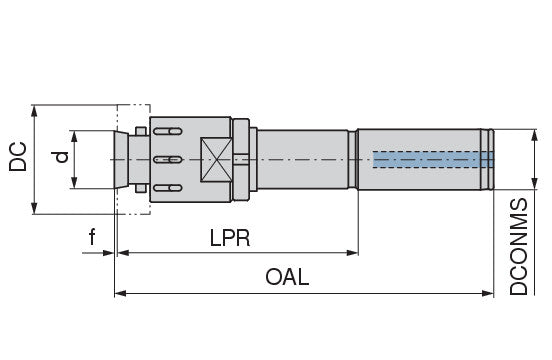

| Properties | ||
|---|---|---|

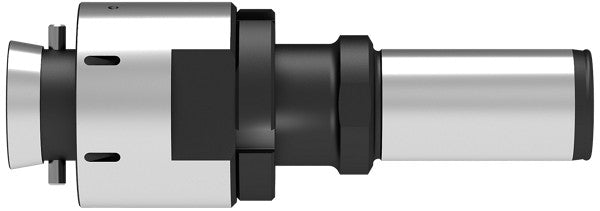

| Name | Ceratizit RING HOLDER BLIND CYL 79.60-90.59 SHORT Cutting Ring Holder For Blind Hole Machining 4089509199 | |
| EDP # | 0756065 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) Steel (Blue) Cast Iron (Red) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 110.0 oz | 3125 g |
| D | 2.0945" | 53.200 mm |
| Cutting edge Ø -range - Inch / DC | 0.1339" - 3.5669" | 3.400 - 90.600 mm |
| F | 0.0591" | 1.500 mm |
| Cutting edge Ø - range / DC | 0.3780" - 3.5669" | 9.600 - 90.599 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Overall length / OAL | 6.9488" | 176.500 mm |
| Protruding length / LPR | 4.1339" | 105.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 2.0945" | 53.200 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
