Description
Ceratizit Article Number: 8432732100
Ceratizit Material Number: 12543517
Ceratizit Komet Number (Unpacked): 545.40.007
Ceratizit Komet Number (Packed): 54540007
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

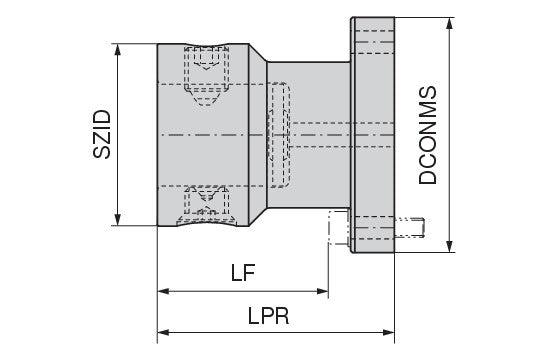

| Properties | ||
|---|---|---|

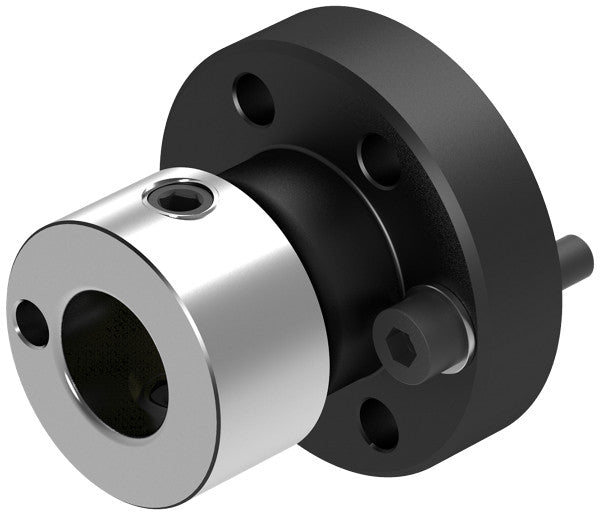

| Name | Ceratizit BUSHING ABS32 / DAH81 Adapter For Compensation Holder 8432732100 | |
| EDP # | 0756103 | |
| Weight (1 pc.) | 16.0 oz | 440 g |
| Machine interface size | DAH 81 | |
| nominal size / SZID | ABS 32 | |
| Protruding length / LPR | 1.3780" | 35.000 mm |
| Mounting spigot diameter / DCONMS | 2.5394" | 64.500 mm |
| Functional length / LF | 0.6693" | 17.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
