Description
Ceratizit Article Number: 4030009000
Ceratizit Material Number: 12543638
Ceratizit Komet Number (Unpacked): 72A.30.09000
Ceratizit Komet Number (Packed): 72A3009000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

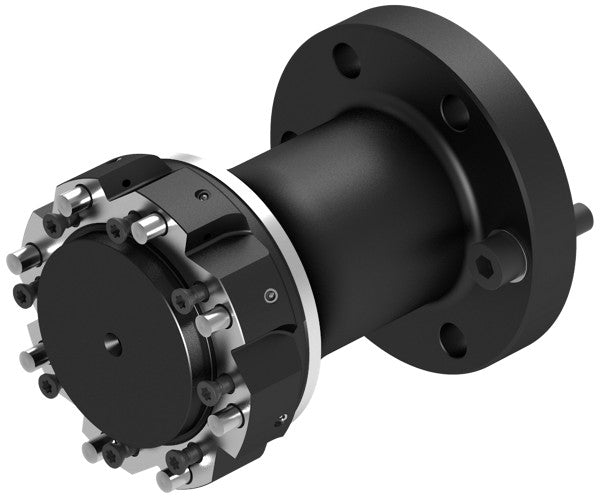

| Name | Ceratizit FREEMAX DAH115 Ø 90 KOMET Freemax - Holder With Interface 4030009000 | |
| EDP # | 0756126 | |
| Weight (1 pc.) | 132.0 oz | 3736 g |

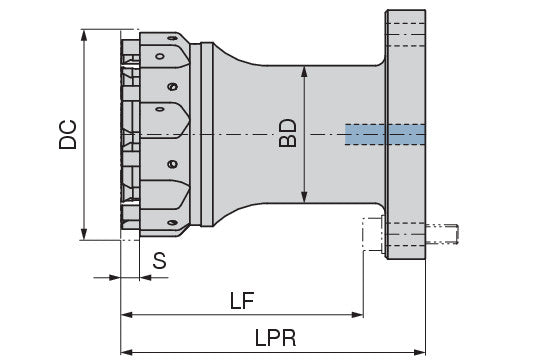

| Cutting diameter / DC | 3.5433" | 90.000 mm |
| Protruding length / LPR | 4.7835" | 121.500 mm |
| Functional length / LF | 3.7795" | 96.000 mm |
| Insert thickness / S | 0.2756" | 7.000 mm |
| Face mounted insert count / ZNF | 8 | |
| torque moment | 4.3 Nm | |
| Machine interface size | DAH 115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
