Description
Ceratizit Article Number: 8422201088
Ceratizit Material Number: 12543870
Ceratizit Komet Number (Unpacked): A32 36061
Ceratizit Komet Number (Packed): A3236061
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

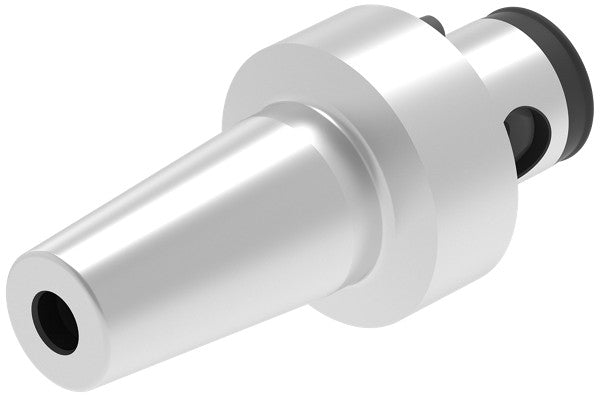

| Name | Ceratizit CLAMPING CHUCK ABS40-T10 Heat Shrink Adapter 4.5° With Connection 8422201088 | |
| EDP # | 0756190 | |
| Weight (1 pc.) | 16.0 oz | 462 g |

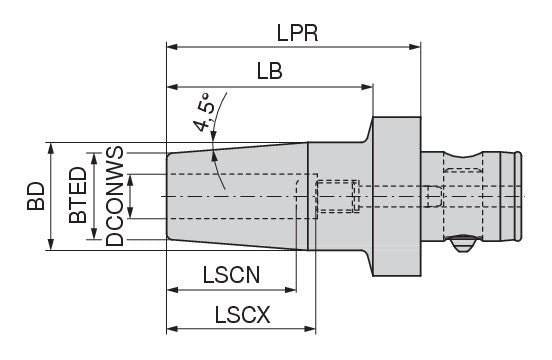

| Machine interface size | ABS 40 | |
| Clamping diameter (DCONWS) / DCONWS | 0.3937" | 10.000 mm |
| Protruding length / LPR | 2.7559" | 70.000 mm |
| Body taper end diameter / BTED | 0.9449" | 24.000 mm |
| Neck diameter (BD) / BD | 1.2598" | 32.000 mm |
| Clamping length maximum machine side / LSCX | 1.6535" | 42.000 mm |
| Clamping length minimum machine side / LSCN | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 3.7795" | 96.000 mm |
| Body length / LB | 2.2047" | 56.000 mm |
| Flange diameter / DF | 1.5748" | 40.000 mm |
| Balance quality | G 6,3 n<sub>max</sub> 15000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
