Description
Ceratizit Article Number: 8423004188
Ceratizit Material Number: 12544032
Ceratizit Komet Number (Unpacked): B10 03011
Ceratizit Komet Number (Packed): B1003011
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SEMI-FINISHED HEAD ABS40-HK Blank With Connection 8423004188 | |
| EDP # | 0756259 | |
| Weight (1 pc.) | 39.0 oz | 1116 g |
| Product-Carbon-Footprint | B | |
| Machine interface size | ABS 40 | |

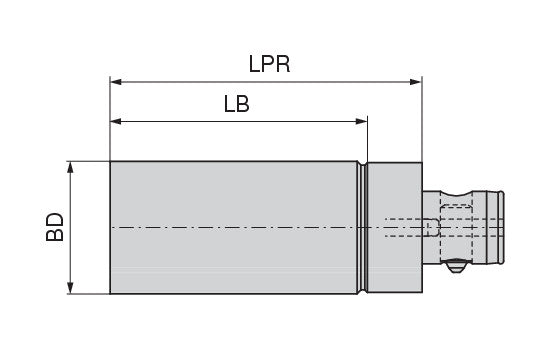

| Neck diameter (BD) / BD | 1.6142" | 41.000 mm |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Body length / LB | 3.2283" | 82.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.9606" | 126.000 mm |
| Flange diameter / DF | 1.5748" | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
