Description
Ceratizit Article Number: 6283811790
Ceratizit Material Number: 12544441
Ceratizit Komet Number (Unpacked): D40 07030
Ceratizit Komet Number (Packed): D4007030
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

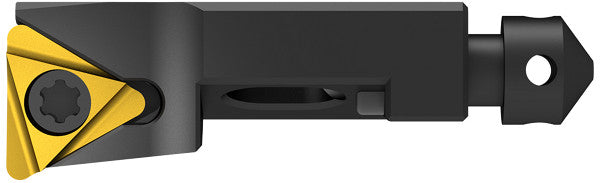

| Name | Ceratizit SHORT CLAMP HOLDER UKS 10-T13-90 R KOMET MicroKom Short Clamping Holder 90° CP.. 6283811790 | |
| EDP # | 0756327 | |
| Weight (1 pc.) | 1.0 oz | 28.5 g |

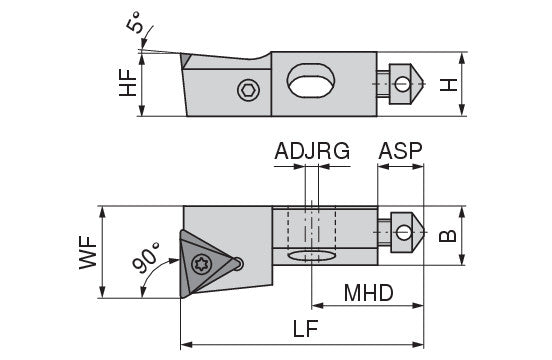

| Functional length / LF | 1.4567" | 37.000 mm |
| Insert | TP.. 1303.. | |
| Mounting hole distance / MHD | 0.6693" | 17.000 mm |
| Adjusting screw protrusion / ASP | 0.2756" | 7.000 mm |
| Overall length / OAL | 1.4567" | 37.000 mm |
| Functional height / HF | 0.3780" | 9.600 mm |
| Shank height / H | 0.3858" | 9.800 mm |
| Minimum bore diameter / DMIN | 1.2992" | 33.000 mm |
| Shank width / B | 0.3543" | 9.000 mm |
| Adjustment range / ADJRG | 0.0787" | 2.000 mm |
| Functional width / WF | 0.5512" | 14.000 mm |
| torque moment | 2.8 Nm | |
| Hand / HAND | R | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
