Description
Ceratizit Article Number: 6283930790
Ceratizit Material Number: 12544503
Ceratizit Komet Number (Unpacked): D40 65190
Ceratizit Komet Number (Packed): D4065190
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

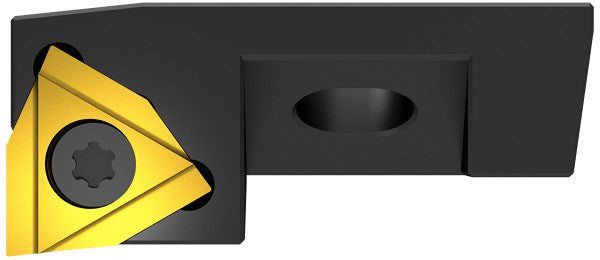

| Name | Ceratizit SHORT CLAMP HOLDER UKS16WOHX0804 90°AX/R KOMET MicroKom - Short Clamping Holder - WO.X 6283930790 | |
| EDP # | 0756355 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 69.2 g |

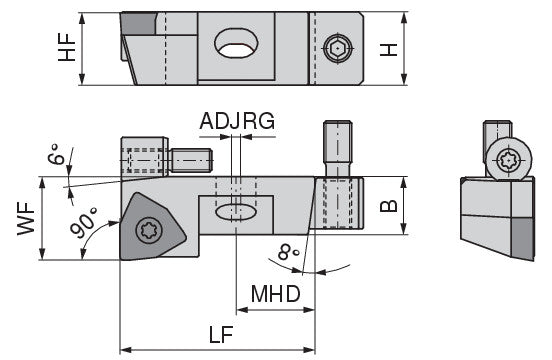

| Functional length / LF | 1.6535" | 42.000 mm |
| Insert | WO.X 0804.. | |
| Mounting hole distance / MHD | 0.6693" | 17.000 mm |
| Functional height / HF | 0.6142" | 15.600 mm |
| Shank height / H | 0.6220" | 15.800 mm |
| Shank width / B | 0.4921" | 12.500 mm |
| Functional width / WF | 0.7087" | 18.000 mm |
| torque moment | 6.25 Nm | |
| Hand / HAND | N | |
| Version | Neutral | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
