Description
Ceratizit Article Number: 6286314400
Ceratizit Material Number: 12545910
Ceratizit Komet Number (Unpacked): M05 20110
Ceratizit Komet Number (Packed): M0520110
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

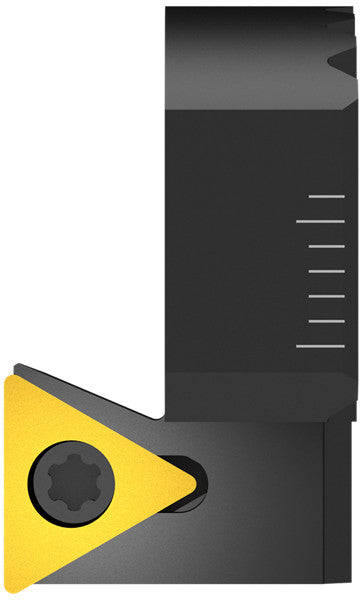

| Name | Ceratizit INSERT HOLDER Ø25 - Ø44 W3014 SpinTools 6286314400 | |
| EDP # | 0756520 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 30.0 g |
| Insert | TO.. 0902 | |
| for | 62 861 06300 | |
| Functional height / HF | 0.5701" | 14.480 mm |
| Cutting diameter maximum / DCX | 2.3622" | 60.000 mm |
| Cutting diameter minimum / DCN | 0.9843" | 25.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
