Description
Ceratizit Article Number: 6285112899
Ceratizit Material Number: 13058421
Ceratizit Komet Number (Unpacked): M05 90940
Ceratizit Komet Number (Packed): M0590940
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

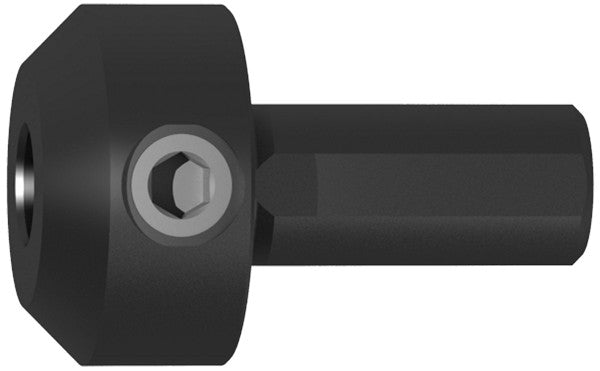

| Name | Ceratizit MK.AD.12.8 SpinTools - UltraMini / EcoCut Boring Bar Adapter 6285112899 | |
| EDP # | 0758810 | |
| Weight (1 pc.) | 3.0 oz | 74.0 g |
| Mounting spigot diameter / DCONMS | 0.4724" | 12.000 mm |
| Overall length / OAL | 1.5354" | 39.000 mm |
| Clamping length machine side / LSC | 0.7087" | 18.000 mm |
| Distance to face / LFSF | 0.5512" | 14.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3150" | 8.000 mm |
| Neck diameter (BD) / BD | 0.9843" | 25.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
