Description
Ceratizit Article Number: 4089208099
Ceratizit Material Number: 14175490
Ceratizit Komet Number (Unpacked): 503.76.009
Ceratizit Komet Number (Packed): 50376009
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

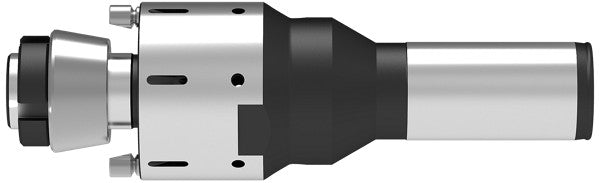

| Name | Ceratizit Ring Holder Cyl 70.60-79.59 Short Cutting Ring For Through Hole Machining 4089208099 | |
| EDP # | 0759269 | |
| Workpiece Material(s) | Aluminum (Green) Steel (Blue) Cast Iron (Red) Aluminum (Green) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 72.0 oz | 2030 g |

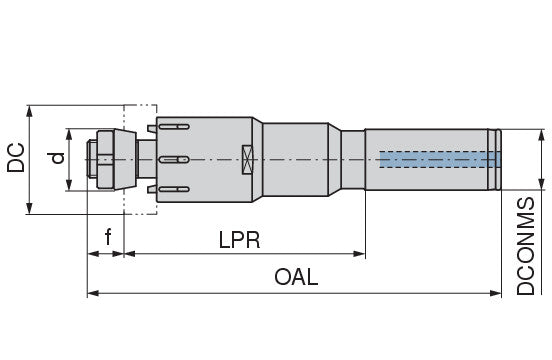

| D | 1.5748" | 40.000 mm |
| Cutting edge Ø -range - Inch / DC | 0.7795" - 3.1338" | 19.800 - 79.600 mm |
| F | 0.9646" | 24.500 mm |
| Cutting edge Ø - range / DC | 0.0236" - 3.1338" | 0.600 - 79.599 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Overall length / OAL | 7.4606" | 189.500 mm |
| Protruding length / LPR | 4.1339" | 105.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.5748" | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
