Description
Ceratizit Article Number: 6000208012
Ceratizit Material Number: 14190314
Ceratizit Komet Number (Unpacked): P05 00010
Ceratizit Komet Number (Packed): P0500010
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

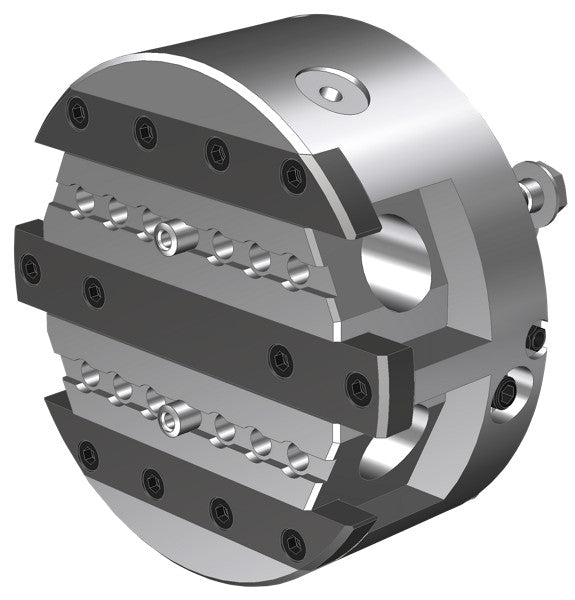

| Name | Ceratizit PKD 80-12-101 KOMET KOMdrive PKD-101 6000208012 | |
| EDP # | 0759372 | |
| Weight (1 pc.) | 147.0 oz | 4171 g |

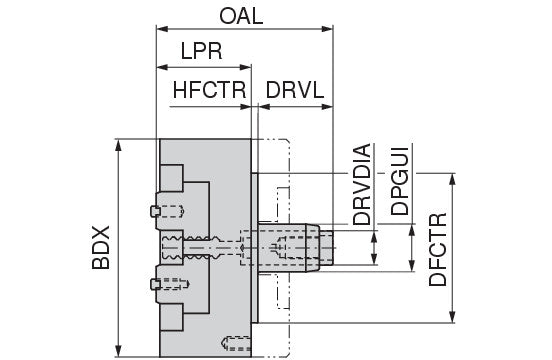

| Protruding length / LPR | 1.6535" | 42.000 mm |
| Centering flange height / HFCTR | 0.1575" | 4.000 mm |
| Drive length / DRVL | 1.3386" | 34.000 mm |
| Drive diameter / DRVDIA | 0.6299" | 16.000 mm |
| Guide pipe diameter / DPGUI | 0.9843" | 25.000 mm |
| Centering flange diameter / DFCTR h6 | 1.9685" | 50.000 mm |
| Body diameter maximum / BDX h6 | 3.1496" | 80.000 mm |
| Adjustment range radial / ADJRGR | 0.4724" | 12.000 mm |
| Stroke / STRK | 0.5630" | 14.300 mm |
| Slide width / SLDW | 0.5906" | 15.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
