Description
Ceratizit Article Number: 8700203453
Ceratizit Material Number: 14353236
Ceratizit Komet Number (Unpacked): A52 50360
Ceratizit Komet Number (Packed): A5250360
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

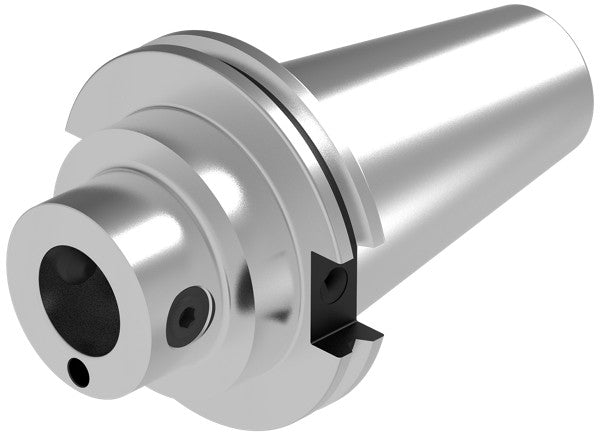

| Name | Ceratizit ABS 63 CAT 50 MS Adapter With Connection 8700203453 | |
| EDP # | 0759790 | |
| Weight (1 pc.) | 141.0 oz | 3998 g |

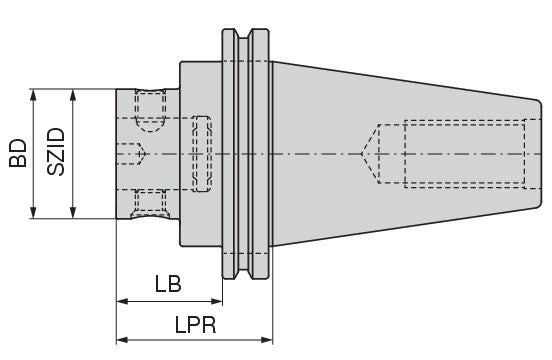

| Machine interface size | CAT 50 / Mori Seiki | |
| nominal size / SZID | ABS 63 | |
| Protruding length / LPR | 3.1496" | 80.000 mm |
| Body length / LB | 2.4016" | 61.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
