Description
Ceratizit Article Number: 6000010010
Ceratizit Material Number: 14490245
Ceratizit Komet Number (Unpacked): P01 10016
Ceratizit Komet Number (Packed): P0110016
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

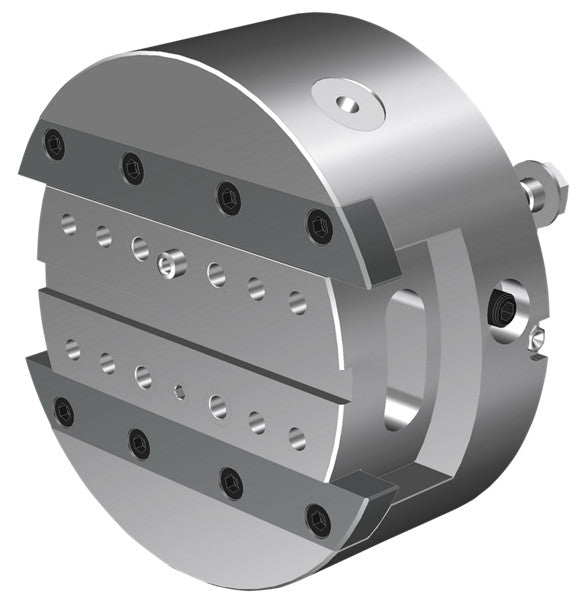

| Name | Ceratizit PKE 100-10-101 QA 2:1 KOMET KOMdrive PKE-101-QA 6000010010 | |
| EDP # | 0760872 | |
| Weight (1 pc.) | 148.0 oz | 4190 g |
| Transmission ratio / TMR | 2 : 1 | |

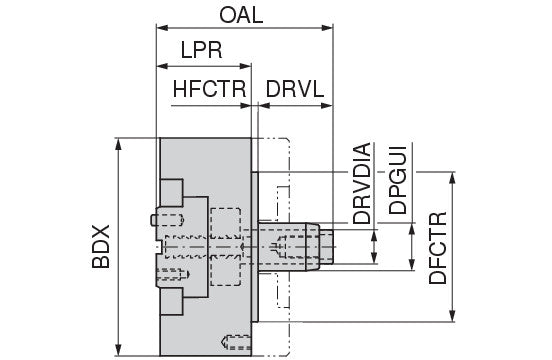

| Protruding length / LPR | 1.9685" | 50.000 mm |
| Centering flange height / HFCTR | 0.1575" | 4.000 mm |
| Drive length / DRVL | 1.4173" | 36.000 mm |
| Drive diameter / DRVDIA | 0.6299" | 16.000 mm |
| Guide pipe diameter / DPGUI | 0.9843" | 25.000 mm |
| Centering flange diameter / DFCTR h6 | 2.5591" | 65.000 mm |
| Body diameter maximum / BDX h6 | 3.9370" | 100.000 mm |
| Adjustment range radial / ADJRGR | 0.3937" | 10.000 mm |
| Stroke / STRK | 0.7992" | 20.300 mm |
| Slide width / SLDW | 1.5748" | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
