Description
OEM SKU: 5616.11190
Rego-Fix is a leading tool holder brand based in Switzerland since 1950.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

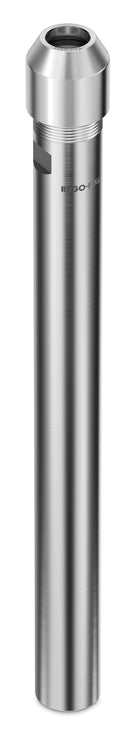

| Name | Rego-Fix CYL 16 x 150/MR 11 Tool Holder 5616.11190 | |
| EDP # | 0646680 | |
| Weight (1 pc.) | 10.0 oz | 270 g |
| Projection | 11.0000" | 279.400 mm |
| Nose Diameter | 0.6304" | 16.000 mm |
| Coolant-thru Capable | Yes | |
Product Features:
- h6 Tolerance Shank
- 0.0001" TIR
- Includes Hi-Q Nut
- High Vibration Damping
- Manufactured in Switzerland
Technical Reference Files:
Background Information:
Cylindrical shank tool holders are as simple as it gets. Depending on whether there are extra shank features these items are used as tool holder extensions or static holders, with the cylindrical shank being held in between a machine spindle specific tool holder or multi-tasking tooling station, and the cutting tool.
The short versions are particularly used on turret lathes, where a short overhang is often required. This type is suited for Swiss automatic machines, machining centers and conventional machines, and can be used as a rotating extension. These items are precision ground and not generally intended to be held in Jacob's / or other jaw chucks if large torque will be necessary.
Hi-Q / MR clamping nuts with collet-locking system for high-speed and high-precision applications. The grooveless micRun Hi-Q clamping nuts lower noise levels. Special treatment lowers frictional forces resulting in up to 80 % higher gripping force over standard nontreated clamping nuts. A patent pending locking system retains the collet in nut for easier assembly, and requires no tool to remove the collet. A fine thread instead of a ball bearing together with a low friction design make our micRun Hi-Q clamping nuts one of the best high-precision clamping nuts on the market.
Company History:
The beginning of what has become Rego-Fix was Fritz Weber founding "Fritz Weber Feinmechanik und Werkzeugbau" in Reigoldswil, Switzerland in 1950. His first serially manufactured product was a broomholder; a humble origin that has shaped the company's history for many years. By 1955 the company employed 15 people and began to venture into toolmaking, and by 1970 also had become a successful brand in cheese cutting, as well as yoghurt and gas bottling machines. In 1972 Rego-Fix invented the ER machine collet system, the innovation which would make the company world-renown. Interestingly, the mechanism for the ER collet system had been used in broom handles from the beginning, but the application to machine tools was much more important. Tool holding technology was continuously developed by the company since that moment, and has produced an additional revolutionary system, PowRgrip. Today Rego-Fix is recognized at the top level of premium brands in the machining industry.
