Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Swiper' line is a tight-tolerance 3D finishing tool which has as many flutes as possible in order to allow for very high feed rates while removing a thin layer of material. These tools should be used last in order to achieve the perfect final form and finish.
'U' form tools are tapered-flank corner-rounded endmills.
| Tool Properties | ||
|---|---|---|

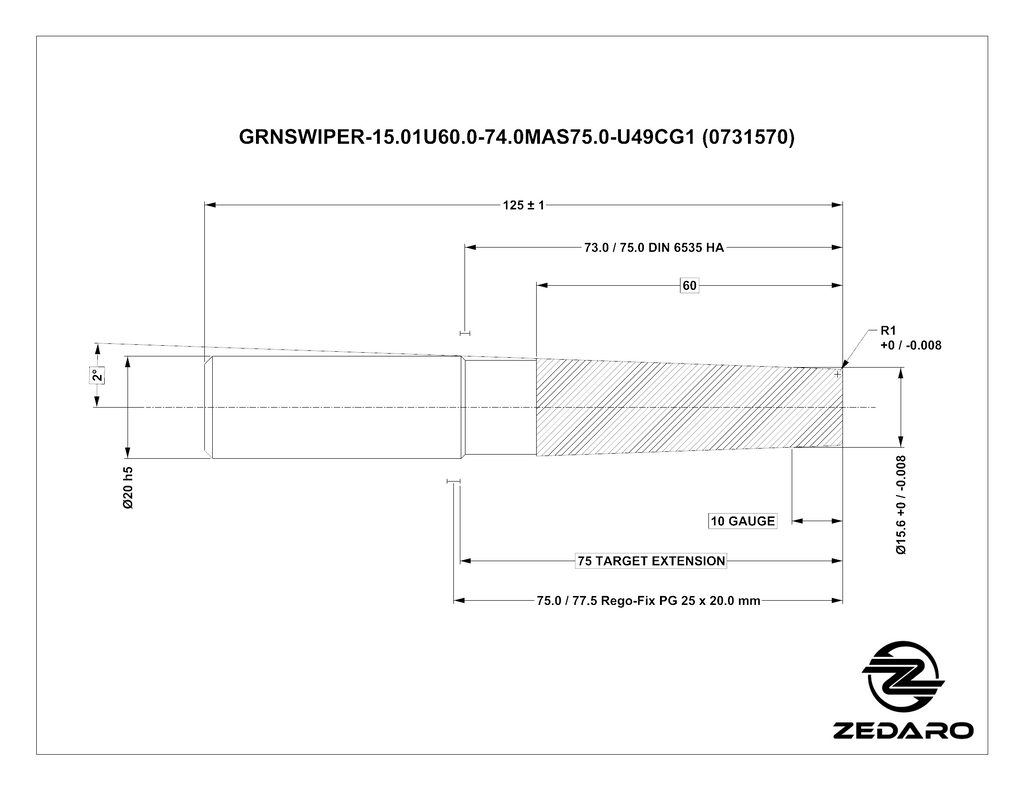

| Name | GRNSWIPER-15.01U60.0-74.0MAS75.0-U49CG1 | |
| EDP # | 0731570 | |
| Material | Wrought Aluminum | Application | Finish 3D Fine (Swiper) |
| Form | Tapered Bull-Nose End Mill | |
| Cutting Diameter | 0.5909" | 15.010 mm |
| Taper per Side | 2.0° | |
| Length of Cut | 2.3622" | 60.000 mm |
| Reach | 2.9134" | 74.000 mm |
| Minimum Extension | 3.0" | 75.0 mm |
| Maximum Extension | 3.7" | 94.5 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.9" | 125 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h5 | |
